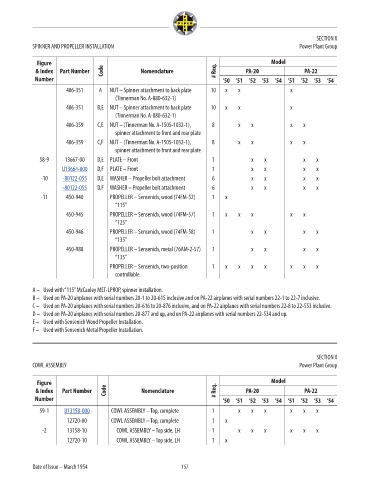

SECTION X
SPINNER AND PROPELLER INSTALLATION Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
406-351 A NUT – Spinner attachment to back plate 10 x x x NM!
(Tinnerman No. A-880-632-1)
406-351 B,E NUT – Spinner attachment to back plate 10 x x x NM!
(Tinnerman No. A-880-632-1)
406-359 C,E NUT – (Tinnerman No. A-1505-1032-1), 8 x x x x NM!
spinner attachment to front and rear plate
406-359 C,F NUT – (Tinnerman No. A-1505-1032-1), 8 x x x x NM!
spinner attachment to front and rear plate
58-9 13667-00 D,E PLATE – Front 1 x x x x NM!
U13664-000 D,F PLATE – Front 1 x x x x 170.2
-10 -80122-055 D,E WASHER – Propeller bolt attachment 6 x x x x 5.37
-80122-055 D,F WASHER – Propeller bolt attachment 6 x x x x 5.37
-11 450-940 PROPELLER – Sensenich, wood (74FM-52) 1 x NM!
“115”
450-945 PROPELLER – Sensenich, wood (74FM-57) 1 x x x x x NM!
“125”
450-946 PROPELLER – Sensenich, wood (74FM-58) 1 x x x x NM!
“135”
450-988 PROPELLER – Sensenich, metal (76AM-2-57) 1 x x x x NM!
“135”
PROPELLER – Sensenich, two-position 1 x x x x x x x x
controllable

A – Used with “115” McCauley MET-LPROP, spinner installation.
B – Used on PA-20 airplanes with serial numbers 20-1 to 20-615 inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-7 inclusive.
C – Used on PA-20 airplanes with serial numbers 20-616 to 20-876 inclusive, and on PA-22 airplanes with serial numbers 22-8 to 22-553 inclusive.
D – Used on PA-20 airplanes with serial numbers 20-877 and up, and on PA-22 airplanes with serial numbers 22-534 and up.
E – Used with Sensenich Wood Propeller Installation.
F – Used with Sensenich Metal Propeller Installation.

SECTION X
COWL ASSEMBLY Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

59-1 U13158-000 COWL ASSEMBLY – Top, complete 1 x x x x x x 1554.92
12720-00 COWL ASSEMBLY – Top, complete 1 x NM!
-2 13158-10 COWL ASSEMBLY – Top side, LH 1 x x x x x x NM!
12720-10 COWL ASSEMBLY – Top side, LH 1 x NM!

Date of Issue – March 1954 157
