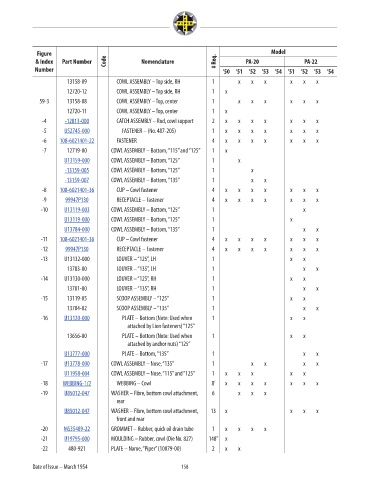

Page 186 - Piper PA-20 Interactive Digital Parts Catalog

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
13158-09 COWL ASSEMBLY – Top side, RH 1 x x x x x x NM!
12720-12 COWL ASSEMBLY – Top side, RH 1 x NM!
59-3 13158-08 COWL ASSEMBLY – Top, center 1 x x x x x x NM!
12720-11 COWL ASSEMBLY – Top, center 1 x NM!
-4 -12813-000 CATCH ASSEMBLY – Rod, cowl support 2 x x x x x x x 58.99
-5 U52745-000 FASTENER – (No. 487-205) 1 x x x x x x x 5.07
-6 108-6021401-22 FASTENER 4 x x x x x x x 109.39
-7 12719-00 COWL ASSEMBLY – Bottom, “115” and “125” 1 x NM!
U13159-000 COWL ASSEMBLY – Bottom, “125” 1 x 1411.82
-13159-005 COWL ASSEMBLY – Bottom, “125” 1 x 1573.19
-13159-007 COWL ASSEMBLY – Bottom, “135” 1 x x 1319.87
-8 108-6021401-36 CUP – Cowl fastener 4 x x x x x x x 32.83
-9 99947P130 RECEPTACLE – Fastener 4 x x x x x x x 6.46
-10 U13119-003 COWL ASSEMBLY – Bottom, “125” 1 x 1874.56
U13119-000 COWL ASSEMBLY – Bottom, “125” 1 x 1898.57
U13784-000 COWL ASSEMBLY – Bottom, “135” 1 x x 1772.47
-11 108-6021401-36 CUP – Cowl fastener 4 x x x x x x x 32.83
-12 99947P130 RECEPTACLE – Fastener 4 x x x x x x x 6.46
-13 U13132-000 LOUVER – “125”, LH 1 x x NM!

13783-00 LOUVER – “135”, LH 1 x x NM!
-14 U13130-000 LOUVER – “125”, RH 1 x x NM!
13781-00 LOUVER – “135”, RH 1 x x NM!
-15 13119-05 SCOOP ASSEMBLY – “125” 1 x x NM!
13784-02 SCOOP ASSEMBLY – “135” 1 x x NM!
-16 U13120-000 PLATE – Bottom (Note: Used when 1 x x 256.58
attached by Lion fasteners) “125”
13656-00 PLATE – Bottom (Note: Used when 1 x x NM!
attached by anchor nuts) “125”
U13777-000 PLATE – Bottom, “135” 1 x x 46.11
-17 U13778-000 COWL ASSEMBLY – Nose, “135” 1 x x x x 2098.58
U11958-004 COWL ASSEMBLY – Nose, “115” and “125” 1 x x x x x 1710.62
-18 WEBBING-1/2 WEBBING – Cowl 8’ x x x x x x x 0.8
-19 U85012-047 WASHER – Fibre, bottom cowl attachment, 6 x x x 0.83
rear
U85012-047 WASHER – Fibre, bottom cowl attachment, 13 x x x x 0.83
front and rear
-20 MS35489-22 GROMMET – Rubber, quick oil drain tube 1 x x x x 2.34
-21 U19795-000 MOULDING – Rubber, cowl (Die No. 827) 148” x 27.08
-22 480-921 PLATE – Name, “Piper” (10079-00) 2 x x NM!

Date of Issue – March 1954 158
