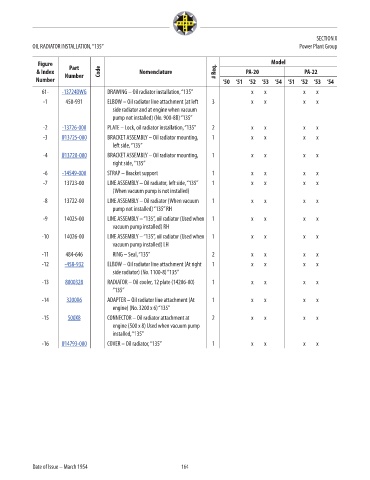

Page 192 - Piper PA-20 Interactive Digital Parts Catalog

SECTION X
OIL RADIATOR INSTALLATION, “135” Power Plant Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
61- -13724DWG DRAWING – Oil radiator installation, “135” x x x x 65.97
-1 458-931 ELBOW – Oil radiator line attachment (at left 3 x x x x NM!
side radiator and at engine when vacuum
pump not installed) (No. 900-8B) “135”

-2 -13726-000 PLATE – Lock, oil radiator installation, “135” 2 x x x x 6.4
-3 U13725-000 BRACKET ASSEMBLY – Oil radiator mounting, 1 x x x x 579.83
left side, “135”
-4 U13720-000 BRACKET ASSEMBLY – Oil radiator mounting, 1 x x x x 355.3
right side, “135”
-6 -14549-000 STRAP – Bracket support 1 x x x x 88.04
-7 13723-00 LINE ASSEMBLY – Oil radiator, left side, “135” 1 x x x x NM!
(When vacuum pump is not installed)
-8 13722-00 LINE ASSEMBLY – Oil radiator (When vacuum 1 x x x x NM!
pump not installed) “135” RH
-9 14025-00 LINE ASSEMBLY – “135”, oil radiator (Used when 1 x x x x NM!
vacuum pump installed) RH
-10 14026-00 LINE ASSEMBLY – “135”, oil radiator (Used when 1 x x x x NM!
vacuum pump installed) LH
-11 484-646 RING – Seal, “135” 2 x x x x NM!
-12 -458-932 ELBOW – Oil radiator line attachment (At right 1 x x x x 14.44
side radiator) (No. 1100-8) “135”
-13 8000328 RADIATOR – Oil cooler, 12 plate (14206-00) 1 x x x x 756
“135”
-14 3200X6 ADAPTER – Oil radiator line attachment (At 1 x x x x 4.58
engine) (No. 3200 x 6) “135”
-15 500X8 CONNECTOR – Oil radiator attachment at 2 x x x x 7.61
engine (500 x 8) Used when vacuum pump
installed, “135”
-16 U14793-000 COVER – Oil radiator, “135” 1 x x x x 116.55

Date of Issue – March 1954 164
