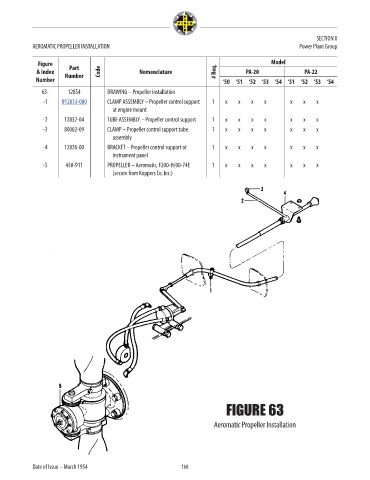

SECTION X
AEROMATIC PROPELLER INSTALLATION Power Plant Group
Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
63- 12854 DRAWING – Propeller installation NM!
-1 U12833-000 CLAMP ASSEMBLY – Propeller control support 1 x x x x x x x 39.58
at engine mount
-2 12832-04 TUBE ASSEMBLY – Propeller control support 1 x x x x x x x NM!
-3 80002-09 CLAMP – Propeller control support tube 1 x x x x x x x NM!
assembly
-4 12826-00 BRACKET – Propeller control support at 1 x x x x x x x NM!
instrument panel
-5 450-911 PROPELLER – Aeromatic, F200-H/00-74E 1 x x x x x x x NM!
(secure from Koppers Co. Inc.)
FIGURE 63
Aeromatic Propeller Installation
Date of Issue – March 1954 168
