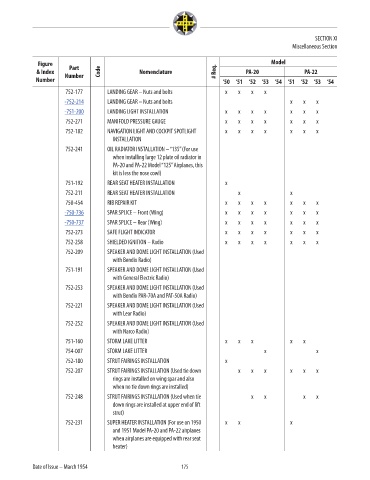

SECTION XI
Miscellaneous Section

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
752-177 LANDING GEAR – Nuts and bolts x x x x NM!
-752-214 LANDING GEAR – Nuts and bolts x x x 138.14
-751-200 LANDING LIGHT INSTALLATION x x x x x x x 1296.94
752-271 MANIFOLD PRESSURE GAUGE x x x x x x x NM!
752-182 NAVIGATION LIGHT AND COCKPIT SPOTLIGHT x x x x x x x NM!
INSTALLATION
752-241 OIL RADIATOR INSTALLATION – “135” (For use NM!
when installing large 12 plate oil radiator in
PA-20 and PA-22 Model “125” Airplanes, this
kit is less the nose cowl)
751-192 REAR SEAT HEATER INSTALLATION x NM!
752-211 REAR SEAT HEATER INSTALLATION x x NM!
750-454 RIB REPAIR KIT x x x x x x x NM!
-750-736 SPAR SPLICE – Front (Wing) x x x x x x x 313.31
-750-737 SPAR SPLICE – Rear (Wing) x x x x x x x 360.8
752-273 SAFE FLIGHT INDICATOR x x x x x x x NM!
752-258 SHIELDED IGNITION – Radio x x x x x x x NM!
752-209 SPEAKER AND DOME LIGHT INSTALLATION (Used NM!
with Bendix Radio)
751-191 SPEAKER AND DOME LIGHT INSTALLATION (Used NM!
with General Electric Radio)
752-253 SPEAKER AND DOME LIGHT INSTALLATION (Used NM!
with Bendix PAR-70A and PAT-50A Radio)
752-221 SPEAKER AND DOME LIGHT INSTALLATION (Used NM!
with Lear Radio)
752-252 SPEAKER AND DOME LIGHT INSTALLATION (Used NM!
with Narco Radio)
751-160 STORM LAKE LITTER x x x x x NM!
754-007 STORM LAKE LITTER x x NM!
752-180 STRUT FAIRINGS INSTALLATION x NM!
752-207 STRUT FAIRINGS INSTALLATION (Used tie down x x x x x x NM!
rings are installed on wing spar and also
when no tie down rings are installed)
752-248 STRUT FAIRINGS INSTALLATION (Used when tie x x x x NM!
down rings are installed at upper end of lift
strut)
752-231 SUPER HEATER INSTALLATION (For use on 1950 x x x NM!
and 1951 Model PA-20 and PA-22 airplanes
when airplanes are equipped with rear seat
heater)

Date of Issue – March 1954 175
