FIGURE 20

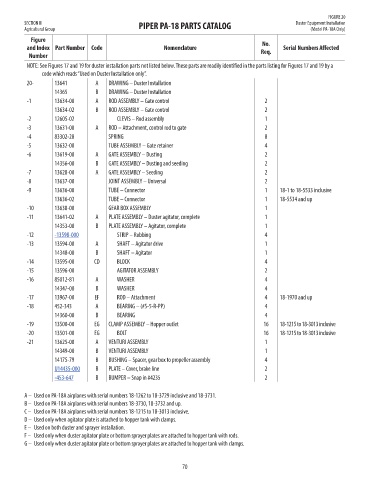

SECTION III PIPER PA-18 PARTS CATALOG Duster Equipment Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
NOTE: See Figures 17 and 19 for duster installation parts not listed below. These parts are readily identified in the parts listing for Figures 17 and 19 by a x
code which reads “Used on Duster Installation only”.
20- 13641 A DRAWING – Duster Installation NM!
14365 B DRAWING – Duster Installation NM!
-1 13634-00 A ROD ASSEMBLY – Gate control 2 NM!
13634-02 B ROD ASSEMBLY – Gate control 2 NM!
-2 12605-02 CLEVIS – Rod assembly 1 NM!
-3 13631-00 A ROD – Attachment, control rod to gate 2 NM!
-4 83302-28 SPRING 8 NM!
-5 13632-00 TUBE ASSEMBLY – Gate retainer 4 NM!
-6 13619-00 A GATE ASSEMBLY – Dusting 2 NM!
14356-00 B GATE ASSEMBLY – Dusting and seeding 2 NM!
-7 13628-00 A GATE ASSEMBLY – Seeding 2 NM!
-8 13637-00 JOINT ASSEMBLY – Universal 2 NM!
-9 13636-00 TUBE – Connector 1 18-1 to 18-5533 inclusive NM!
13636-02 TUBE – Connector 1 18-5534 and up NM!
-10 13638-00 GEAR BOX ASSEMBLY 1 NM!
-11 13641-02 A PLATE ASSEMBLY – Duster agitator, complete 1 NM!
14353-00 B PLATE ASSEMBLY – Agitator, complete 1 NM!
-12 -13598-000 STRIP – Rubbing 4 19.21
-13 13594-00 A SHAFT – Agitator drive 1 NM!
14348-00 B SHAFT – Agitator 1 NM!
-14 13595-00 CD BLOCK 4 NM!
-15 13596-00 AGITATOR ASSEMBLY 2 NM!
-16 85012-81 A WASHER 4 NM!
14347-00 B WASHER 4 NM!
-17 13967-00 EF ROD – Attachment 4 18-1970 and up NM!
-18 452-343 A BEARING – (#S-5-R-PP) 4 NM!
14360-00 B BEARING 4 NM!
-19 13500-00 EG CLAMP ASSEMBLY – Hopper outlet 16 18-1215 to 18-3013 inclusive NM!
-20 13501-00 EG BOLT 16 18-1215 to 18-3013 inclusive NM!
-21 13625-00 A VENTURI ASSEMBLY 1 NM!
14349-00 B VENTURI ASSEMBLY 1 NM!
14175-79 B BUSHING – Spacer, gear box to propeller assembly 4 NM!
U14435-000 B PLATE – Cover, brake line 2 108.06
-453-647 B BUMPER – Snap in #4235 2 3.46

A – Used on PA-18A airplanes with serial numbers 18-1262 to 18-3729 inclusive and 18-3731.
B – Used on PA-18A airplanes with serial numbers 18-3730, 18-3732 and up.
C – Used on PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
D – Used only when agitator plate is attached to hopper tank with clamps.
E – Used on both duster and sprayer installation.
F – Used only when duster agitator plate or bottom sprayer plates are attached to hopper tank with rods.
G – Used only when duster agitator plate or bottom sprayer plates are attached to hopper tank with clamps.

70
