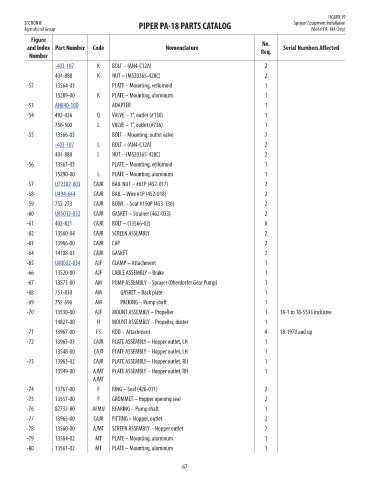

FIGURE 19
SECTION III PIPER PA-18 PARTS CATALOG Sprayer Equipment Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-403-107 K BOLT – (AN4-C12A) 2 0.67
404-888 K NUT – (MS20365-428C) 2 NM!
-52 13564-03 PLATE – Mounting, vellumoid 1 NM!
15289-00 K PLATE – Mounting, aluminum 1 NM!
-53 AN840-10D ADAPTER 1 31.68
-54 492-026 Q VALVE – 1“, outlet (#130) 1 NM!
756-500 L VALVE – 1”, outlet (#736) 1 NM!
-55 13566-03 BOLT – Mounting, outlet valve 2 NM!
-403-107 L BOLT – (AN4-C12A) 2 0.67
404-888 L NUT – (MS20365-428C) 2 NM!
-56 13561-03 PLATE – Mounting, vellumoid 1 NM!
15290-00 L PLATE – Mounting, aluminum 1 NM!
-57 U72302-003 CAJR BAIL NUT – #61P (452-017) 2 21.34
-58 U494-644 CAJR BAIL – Wire #1P (452-018) 2 69.43
-59 752-273 CAJR BOWL – Seat #150P (453-130) 2 NM!
-60 U85012-032 CAJR GASKET – Strainer (462-033) 2 4.19
-61 402-821 CAJR BOLT – (13566-02) 8 NM!
-62 13560-04 CAJR SCREEN ASSEMBLY 2 NM!
-63 13966-00 CAJR CAP 2 NM!
-64 14108-03 CAJR GASKET 2 NM!
-65 U80032-034 AJF CLAMP – Attachment 1 25.91
-66 13520-00 AJF CABLE ASSEMBLY – Brake 1 NM!
-67 13573-00 AM PUMP ASSEMBLY – Sprayer (Oberdorfer Gear Pump) 1 NM!
-68 751-830 AM GASKET – Back plate 1 NM!
-69 752-696 AM PACKING – Pump shaft 1 NM!
-70 13530-00 AJF MOUNT ASSEMBLY – Propeller 1 18-1 to 18-5533 inclusive NM!
14827-00 H MOUNT ASSEMBLY – Propeller, duster 1 NM!
-71 13967-00 FS ROD – Attachment 4 18-1970 and up NM!
-72 13963-03 CAJR PLATE ASSEMBLY – Hopper outlet, LH 1 NM!
13548-00 CAJT PLATE ASSEMBLY – Hopper outlet, LH 1 NM!
-73 13963-02 CAJR PLATE ASSEMBLY – Hopper outlet, RH 1 NM!
13549-00 AJMT PLATE ASSEMBLY – Hopper outlet, RH 1 NM!
AJMT
-74 13767-00 F RING – Seal (426-011) 2 NM!
-75 13557-00 F GROMMET – Hopper opening seal 2 NM!
-76 82732-80 AFMU BEARING – Pump shaft 1 NM!
-77 13965-00 CAJR FITTING – Hopper, outlet 2 NM!
-78 13560-00 AJMT SCREEN ASSEMBLY – Hopper outlet 2 NM!
-79 13564-02 MT PLATE – Mounting, aluminum 1 NM!
-80 13561-02 MT PLATE – Mounting, aluminum 1 NM!
