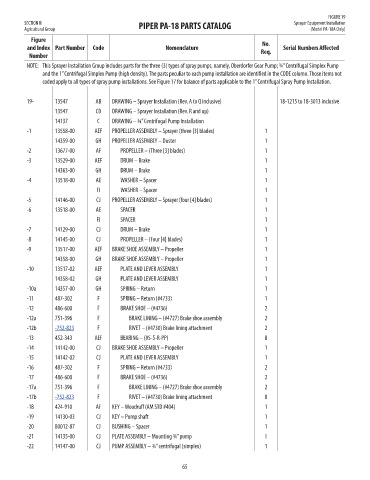

FIGURE 19
SECTION III PIPER PA-18 PARTS CATALOG Sprayer Equipment Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
NOTE: This Sprayer Installation Group includes parts for the three (3) types of spray pumps, namely, Oberdorfer Gear Pump; ¾” Centrifugal Simplex Pump
and the 1” Centrifugal Simplex Pump (high density). The parts peculiar to each pump installation are identified in the CODE column. Those items not
coded apply to all types of spray pump installations. See Figure 17 for balance of parts applicable to the 1” Centrifugal Spray Pump Installation.

19- 13547 AB DRAWING – Sprayer Installation (Rev. A to Q inclusive) 18-1215 to 18-3013 inclusive NM!
13547 CD DRAWING – Sprayer Installation (Rev. R and up) NM!
14137 C DRAWING – ¾” Centrifugal Pump Installation NM!
-1 13558-00 AEF PROPELLER ASSEMBLY – Sprayer (three [3] blades) 1 NM!
14359-00 GH PROPELLER ASSEMBLY – Duster 1 NM!
-2 13677-00 AF PROPELLER – (Three [3] blades) 1 NM!
-3 13529-00 AEF DRUM – Brake 1 NM!
14363-00 GH DRUM – Brake 1 NM!
-4 13518-00 AE WASHER – Spacer 1 NM!
FJ WASHER – Spacer 1 x
-5 14146-00 CJ PROPELLER ASSEMBLY – Sprayer (four [4] blades) 1 NM!
-6 13518-00 AE SPACER 1 NM!
FJ SPACER 1 x
-7 14129-00 CJ DRUM – Brake 1 NM!
-8 14145-00 CJ PROPELLER – (Four [4] blades) 1 NM!
-9 13517-00 AEF BRAKE SHOE ASSEMBLY – Propeller 1 NM!

14358-00 GH BRAKE SHOE ASSEMBLY – Propeller 1 NM!
-10 13517-02 AEF PLATE AND LEVER ASSEMBLY 1 NM!
14358-02 GH PLATE AND LEVER ASSEMBLY 1 NM!
-10a 14357-00 GH SPRING – Return 1 NM!
-11 487-302 F SPRING – Return (#4733) 1 NM!
-12 486-600 F BRAKE SHOE – (#4736) 2 NM!
-12a 751-396 F BRAKE LINING – (#4727) Brake shoe assembly 2 NM!
-12b -752-823 F RIVET – (#4730) Brake lining attachment 2 0.1
-13 452-343 AEF BEARING – (#S-5-R-PP) 8 NM!
-14 14142-00 CJ BRAKE SHOE ASSEMBLY – Propeller 1 NM!
-15 14142-02 CJ PLATE AND LEVER ASSEMBLY 1 NM!
-16 487-302 F SPRING – Return (#4733) 2 NM!
-17 486-600 F BRAKE SHOE – (#4736) 2 NM!
-17a 751-396 F BRAKE LINING – (#4727) Brake shoe assembly 2 NM!
-17b -752-823 F RIVET – (#4730) Brake lining attachment 8 0.1
-18 424-910 AF KEY – Woodruff (AM STD #404) 1 NM!
-19 14130-03 CJ KEY – Pump shaft 1 NM!
-20 80012-87 CJ BUSHING – Spacer 1 NM!
-21 14135-00 CJ PLATE ASSEMBLY – Mounting ¾” pump I NM!
-22 14147-00 CJ PUMP ASSEMBLY – ¾” centrifugal (simplex) 1 NM!

65
