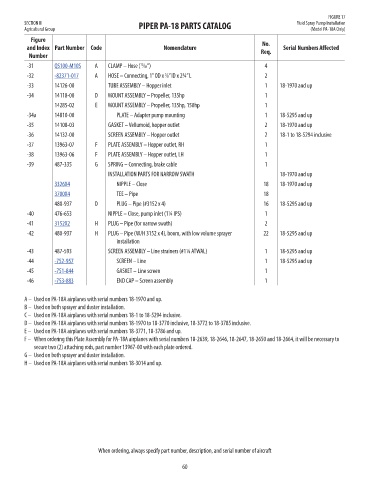

Page 70 - Piper PA-18 Super Cub Interactive Parts Catalog

FIGURE 17
SECTION III PIPER PA-18 PARTS CATALOG Fluid Spray Pump Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-31 QS100-M10S A CLAMP – Hose ( ⁄16”) 4 2.71
15
-32 -82371-017 A HOSE – Connecting, 1” OD x ⁄8” ID x 2¾” L 2 46.72
5
-33 14126-00 TUBE ASSEMBLY – Hopper inlet 1 18-1970 and up NM!
-34 14118-00 D MOUNT ASSEMBLY – Propeller, 135hp 1 NM!
14285-02 E MOUNT ASSEMBLY – Propeller, 135hp, 150hp 1 NM!
-34a 14810-00 PLATE – Adapter pump mounting 1 18-5295 and up NM!
-35 14108-03 GASKET – Vellumoid, hopper outlet 2 18-1970 and up NM!
-36 14132-00 SCREEN ASSEMBLY – Hopper outlet 2 18-1 to 18-5294 inclusive NM!
-37 13963-07 F PLATE ASSEMBLY – Hopper outlet, RH 1 NM!
-38 13963-06 F PLATE ASSEMBLY – Hopper outlet, LH 1 NM!
-39 487-335 G SPRING – Connecting, brake cable 1 NM!
INSTALLATION PARTS FOR NARROW SWATH 18-1970 and up x
3326X4 NIPPLE – Close 18 18-1970 and up 0.97
3700X4 TEE – Pipe 18 1
480-937 D PLUG – Pipe (#3152 x 4) 16 18-5295 and up NM!
-40 476-653 NIPPLE – Close, pump inlet (1¼ IPS) 1 NM!
-41 3152X2 H PLUG – Pipe (for narrow swath) 2 1.42
-42 480-937 H PLUG – Pipe (W/H 3152 x 4), boom, with low volume sprayer 22 18-5295 and up NM!
installation
-43 487-593 SCREEN ASSEMBLY – Line strainers (#1¼ ATWAL) 1 18-5295 and up NM!
-44 -752-957 SCREEN – Line 1 18-5295 and up 20.16
-45 -751-844 GASKET – Line screen 1 0.92
-46 -753-883 END CAP – Screen assembly 1 95.13

A – Used on PA-18A airplanes with serial numbers 18-1970 and up.
B – Used on both sprayer and duster installation.
C – Used on PA-18A airplanes with serial numbers 18-1 to 18-5294 inclusive.
D – Used on PA-18A airplanes with serial numbers 18-1970 to 18-3770 inclusive, 18-3772 to 18-3785 inclusive.
E – Used on PA-18A airplanes with serial numbers 18-3771, 18-3786 and up.
F – When ordering this Plate Assembly for PA-18A airplanes with serial numbers 18-2639, 18-2646, 18-2647, 18-2650 and 18-2664, it will be necessary to
secure two (2) attaching rods, part number 13967-00 with each plate ordered.
G – Used on both sprayer and duster installation.
H – Used on PA-18A airplanes with serial numbers 18-3014 and up.

When ordering, always specify part number, description, and serial number of aircraft
