Page 67 - Piper PA-18 Super Cub Interactive Parts Catalog

FIGURE 16A

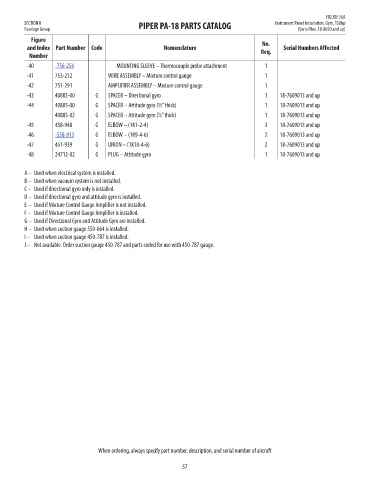

SECTION II PIPER PA-18 PARTS CATALOG Instrument Panel Installation, Gyro, 150hp
Fuselage Group (Serial Nos. 18-8020 and up)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-40 -756-256 MOUNTING SLEEVE – Thermocouple probe attachment 1 6.46
-41 753-212 WIRE ASSEMBLY – Mixture control gauge 1 NM!
-42 751-291 AMPLIFIER ASSEMBLY – Mixture control gauge 1 NM!
-43 40885-00 G SPACER – Directional gyro 1 18-7609013 and up NM!
-44 40885-00 G SPACER – Attitude gyro (½” thick) 1 18-7609013 and up NM!
40885-02 G SPACER – Attitude gyro ( ⁄8” thick) 1 18-7609013 and up NM!
5
-45 458-948 G ELBOW – (1K1-2-4) 3 18-7609013 and up NM!
-46 -558-913 G ELBOW – (1K9-4-6) 2 18-7609013 and up 34
-47 451-939 G UNION – (1K10-4-6) 2 18-7609013 and up NM!
-48 24712-02 G PLUG – Attitude gyro 1 18-7609013 and up NM!

A – Used when electrical system is installed.
B – Used when vacuum system is not installed.
C – Used if directional gyro only is installed.
D – Used if directional gyro and attitude gyro is installed.
E – Used if Mixture Control Gauge Amplifier is not installed.
F – Used if Mixture Control Gauge Amplifier is installed.
G – Used if Directional Gyro and Attitude Gyro are installed.
H – Used when suction gauge 550-664 is installed.
I – Used when suction gauge 450-787 is installed.
J – Not available. Order suction gauge 450-787 and parts coded for use with 450-787 gauge.

When ordering, always specify part number, description, and serial number of aircraft
