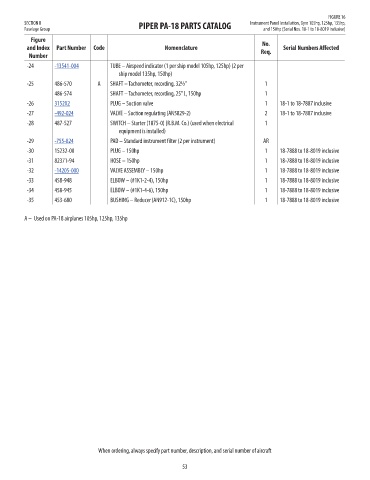

FIGURE 16
SECTION II PIPER PA-18 PARTS CATALOG Instrument Panel Installation, Gyro 105hp, 125hp, 135hp,
Fuselage Group and 150hp (Serial Nos. 18-1 to 18-8019 inclusive)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-24 -13541-004 TUBE – Airspeed indicator (1 per ship model 105hp, 125hp) (2 per 13.54
ship model 135hp, 150hp)
-25 486-570 A SHAFT – Tachometer, recording, 32½” 1 NM!
486-574 SHAFT – Tachometer, recording, 25” L, 150hp 1 NM!
-26 3152X2 PLUG – Suction valve 1 18-1 to 18-7887 inclusive 1.42
-27 -492-024 VALVE – Suction regulating (AN5829-2) 2 18-1 to 18-7887 inclusive 24.95
-28 487-527 SWITCH – Starter (1875-0) (R.B.M. Co.) (used when electrical 1 NM!
equipment is installed)
-29 -755-824 PAD – Standard instrument filter (2 per instrument) AR 0.23
-30 15232-00 PLUG – 150hp 1 18-7888 to 18-8019 inclusive NM!
-31 82371-94 HOSE – 150hp 1 18-7888 to 18-8019 inclusive NM!
-32 -14205-000 VALVE ASSEMBLY – 150hp 1 18-7888 to 18-8019 inclusive 101.87
-33 458-948 ELBOW – (#1K1-2-4), 150hp 1 18-7888 to 18-8019 inclusive NM!
-34 458-945 ELBOW – (#1K1-4-6), 150hp 1 18-7888 to 18-8019 inclusive NM!
-35 453-680 BUSHING – Reducer (AN912-1C), 150hp 1 18-7888 to 18-8019 inclusive NM!

A – Used on PA-18 airplanes 105hp, 125hp, 135hp

When ordering, always specify part number, description, and serial number of aircraft

53
