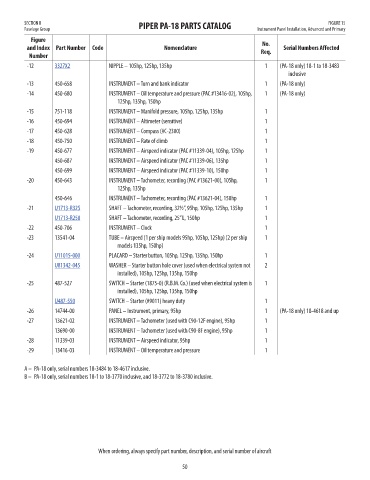

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 15
Fuselage Group Instrument Panel Installation, Advanced and Primary
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-12 3327X2 NIPPLE – 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 2.64
inclusive
-13 450-658 INSTRUMENT – Turn and bank indicator 1 (PA-18 only) NM!
-14 450-680 INSTRUMENT – Oil temperature and pressure (PAC #13416-02), 105hp, 1 (PA-18 only) NM!
125hp, 135hp, 150hp
-15 751-118 INSTRUMENT – Manifold pressure, 105hp, 125hp, 135hp 1 NM!
-16 450-694 INSTRUMENT – Altimeter (sensitive) 1 NM!
-17 450-628 INSTRUMENT – Compass (#C-2300) 1 NM!
-18 450-750 INSTRUMENT – Rate of climb 1 NM!
-19 450-677 INSTRUMENT – Airspeed indicator (PAC #11339-04), 105hp, 125hp 1 NM!
450-687 INSTRUMENT – Airspeed indicator (PAC #11339-06), 135hp 1 NM!
450-699 INSTRUMENT – Airspeed indicator (PAC #11339-10), 150hp 1 NM!
-20 450-643 INSTRUMENT – Tachometer, recording (PAC #13621-00), 105hp, 1 NM!
125hp, 135hp
450-646 INSTRUMENT – Tachometer, recording (PAC #13621-04), 150hp 1 NM!
-21 U1713-R325 SHAFT – Tachometer, recording, 32½”, 95hp, 105hp, 125hp, 135hp 1 165.41
U1713-R250 SHAFT – Tachometer, recording, 25” L, 150hp 1 126.13
-22 450-706 INSTRUMENT – Clock 1 NM!
-23 13541-04 TUBE – Airspeed (1 per ship models 95hp, 105hp, 125hp) (2 per ship 1 NM!
models 135hp, 150hp)
-24 U11015-000 PLACARD – Starter button, 105hp, 125hp, 135hp, 150hp 1 17.34
U81342-045 WASHER – Starter button hole cover (used when electrical system not 2 4.62
installed), 105hp, 125hp, 135hp, 150hp
-25 487-527 SWITCH – Starter (1875-0) (R.B.M. Co.) (used when electrical system is 1 NM!
installed), 105hp, 125hp, 135hp, 150hp
U487-550 SWITCH – Starter (#9011) heavy duty 1 65.84
-26 14744-00 PANEL – Instrument, primary, 95hp 1 (PA-18 only) 18-4618 and up NM!
-27 13621-02 INSTRUMENT – Tachometer (used with C90-12F engine), 95hp 1 NM!
13690-00 INSTRUMENT – Tachometer (used with C90-8F engine), 95hp 1 NM!
-28 11339-03 INSTRUMENT – Airspeed indicator, 95hp 1 NM!
-29 13416-03 INSTRUMENT – Oil temperature and pressure 1 NM!

A – PA-18 only, serial numbers 18-3484 to 18-4617 inclusive.
B – PA-18 only, serial numbers 18-1 to 18-3770 inclusive, and 18-3772 to 18-3780 inclusive.

When ordering, always specify part number, description, and serial number of aircraft

50
