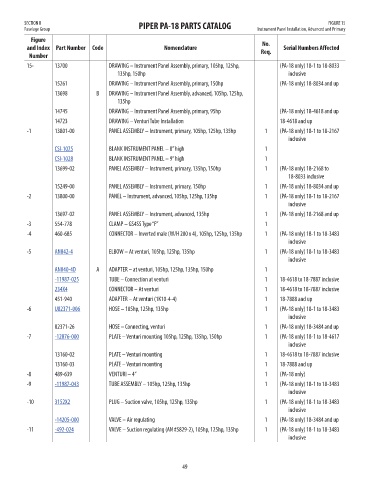

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 15
Fuselage Group Instrument Panel Installation, Advanced and Primary
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
15- 13700 DRAWING – Instrument Panel Assembly, primary, 105hp, 125hp, (PA-18 only) 18-1 to 18-8033 NM!
135hp, 150hp inclusive
15261 DRAWING – Instrument Panel Assembly, primary, 150hp (PA-18 only) 18-8034 and up NM!
13698 B DRAWING – Instrument Panel Assembly, advanced, 105hp, 125hp, NM!
135hp
14745 DRAWING – Instrument Panel Assembly, primary, 95hp (PA-18 only) 18-4618 and up NM!
14723 DRAWING – Venturi Tube Installation 18-4618 and up NM!
-1 13801-00 PANEL ASSEMBLY – Instrument, primary, 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-2167 NM!
inclusive
CSI-1025 BLANK INSTRUMENT PANEL – 8” high 1 105.47
CSI-1028 BLANK INSTRUMENT PANEL – 9” high 1 105.47
13699-02 PANEL ASSEMBLY – Instrument, primary, 135hp, 150hp 1 (PA-18 only) 18-2168 to NM!
18-8033 inclusive
15249-00 PANEL ASSEMBLY – Instrument, primary, 150hp 1 (PA-18 only) 18-8034 and up NM!
-2 13800-00 PANEL – Instrument, advanced, 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-2167 NM!
inclusive
13697-02 PANEL ASSEMBLY – Instrument, advanced, 135hp 1 (PA-18 only) 18-2168 and up NM!
-3 554-778 CLAMP – GS4SS Type “F” 1 NM!
-4 460-685 CONNECTOR – Inverted male (W/H 200 x 4), 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 NM!
inclusive
-5 AN842-4 ELBOW – At venturi, 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 52
inclusive
AN840-4D A ADAPTER – at venturi, 105hp, 125hp, 135hp, 150hp 1 7.5
-11987-025 TUBE – Connection at venturi 1 18-4618 to 18-7887 inclusive 27.34
234X4 CONNECTOR – At venturi 1 18-4618 to 18-7887 inclusive 7.9
451-940 ADAPTER – At venturi (1K10-4-4) 1 18-7888 and up NM!
-6 U82371-006 HOSE – 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 29.79
inclusive
82371-26 HOSE – Connecting, venturi 1 (PA-18 only) 18-3484 and up NM!
-7 -12876-000 PLATE – Venturi mounting 105hp, 125hp, 135hp, 150hp 1 (PA-18 only) 18-1 to 18-4617 68.73
inclusive
13160-02 PLATE – Venturi mounting 1 18-4618 to 18-7887 inclusive NM!
13160-03 PLATE – Venturi mounting 1 18-7888 and up NM!
-8 489-639 VENTURI – 4” 1 (PA-18 only) NM!
-9 -11987-043 TUBE ASSEMBLY – 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 9.25
inclusive
-10 3152X2 PLUG – Suction valve, 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 1.42
inclusive
-14205-000 VALVE – Air regulating 1 (PA-18 only) 18-3484 and up 101.87
-11 -492-024 VALVE – Suction regulating (AN #5829-2), 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-3483 24.95
inclusive
