SECTION II PIPER PA-18 PARTS CATALOG FIGURE 14
Fuselage Group Instrument Panel Installation, Standard

Note: All instruments called out in this Parts List are blackfaced and are the only type being
supplied as service replacements for this aircraft. The compass is the small type and is the only
compass which will be supplied for service replacement. A mounting plate will be supplied
with each compass to be used when installing in aircraft in which the original compass was the
large type. The oil temperature and pressure gauge being supplied is the 4-hole mounting type.
A mounting plate will be supplied with this gauge for use when installing in aircraft in which
the original gauge was the 2-hole mounting type. All instrument mounting holes contained
in the standard instrument panels will be the same size. Adapter plates and bushings will be
supplied with each panel for mounting the various sized instruments used.

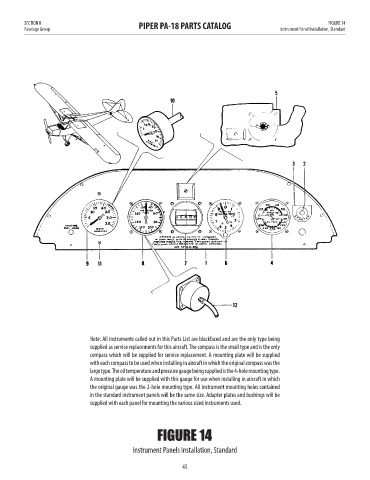

FIGURE 14

Instrument Panels Installation, Standard

45
