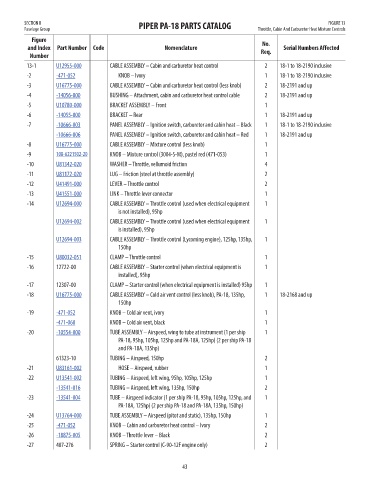

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 13
Fuselage Group Throttle, Cabin And Carburetor Heat Mixture Controls
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
13-1 U12955-000 CABLE ASSEMBLY – Cabin and carburetor heat control 2 18-1 to 18-2190 inclusive 199.02
-2 -471-052 KNOB – Ivory 1 18-1 to 18-2190 inclusive 5.39
-3 U16775-000 CABLE ASSEMBLY – Cabin and carburetor heat control (less knob) 2 18-2191 and up 77.86
-4 -14056-000 BUSHING – Attachment, cabin and carburetor heat control cable 2 18-2191 and up 34.91
-5 U10780-000 BRACKET ASSEMBLY – Front 1 115.46
-6 -14055-000 BRACKET – Rear 1 18-2191 and up 106.05
-7 -10666-003 PANEL ASSEMBLY – Ignition switch, carburetor and cabin heat – Black 1 18-1 to 18-2190 inclusive 259.18
-10666-006 PANEL ASSEMBLY – Ignition switch, carburetor and cabin heat – Red 1 18-2191 and up 259.18
-8 U16775-000 CABLE ASSEMBLY – Mixture control (less knob) 1 77.86
-9 108-6221502-20 KNOB – Mixture control (3004-S-M), pastel red (471-053) 1 6.98
-10 U81342-020 WASHER – Throttle, vellumoid friction 4 3.32
-11 U81172-020 LUG – Friction (steel at throttle assembly) 2 8.58
-12 U41491-000 LEVER – Throttle control 2 76.8
-13 U41551-000 LINK – Throttle lever connector 1 61.33
-14 U12694-000 CABLE ASSEMBLY – Throttle control (used when electrical equipment 1 564.5
is not installed), 95hp
U12694-002 CABLE ASSEMBLY – Throttle control (used when electrical equipment 1 553.61
is installed), 95hp
U12694-003 CABLE ASSEMBLY – Throttle control (Lycoming engine), 125hp, 135hp, 1 531.05
150hp
-15 U80032-051 CLAMP – Throttle control 1 17.09
-16 12722-00 CABLE ASSEMBLY – Starter control (when electrical equipment is 1 NM!
installed), 95hp
-17 12307-00 CLAMP – Starter control (when electrical equipment is installed) 95hp 1 NM!
-18 U16775-000 CABLE ASSEMBLY – Cold air vent control (less knob), PA-18, 135hp, 1 18-2168 and up 77.86
150hp
-19 -471-052 KNOB – Cold air vent, ivory 1 5.39
-471-060 KNOB – Cold air vent, black 1 3.7
-20 -10554-000 TUBE ASSEMBLY – Airspeed, wing to tube at instrument (1 per ship 1 16.7
PA-18, 95hp, 105hp, 125hp and PA-18A, 125hp) (2 per ship PA-18
and PA-18A, 135hp)
61323-10 TUBING – Airspeed, 150hp 2 NM!
-21 U83161-002 HOSE – Airspeed, rubber 1 5.91
-22 U13541-002 TUBING – Airspeed, left wing, 95hp, 105hp, 125hp 1 66.08
-13541-016 TUBING – Airspeed, left wing, 135hp, 150hp 2 74.01
-23 -13541-004 TUBE – Airspeed indicator (1 per ship PA-18, 95hp, 105hp, 125hp, and 1 13.54
PA-18A, 125hp) (2 per ship PA-18 and PA-18A, 135hp, 150hp)
-24 U13764-000 TUBE ASSEMBLY – Airspeed (pitot and static), 135hp, 150hp 1 197.25
-25 -471-052 KNOB – Cabin and carburetor heat control – Ivory 2 5.39
-26 -18875-005 KNOB – Throttle lever – Black 2 11.03
-27 487-276 SPRING – Starter control (C-90-12F engine only) 2 NM!
