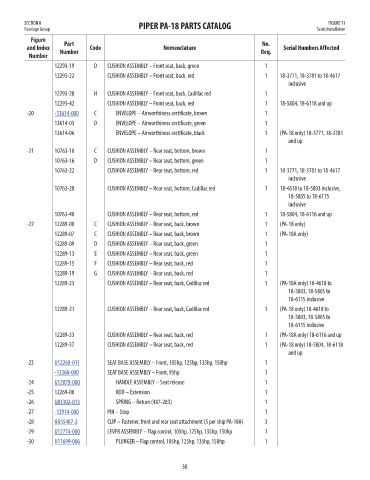

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 11
Fuselage Group Seats Installation
Figure
No.
Part
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
12293-19 D CUSHION ASSEMBLY – Front seat, back, green 1 NM!
12293-22 CUSHION ASSEMBLY – Front seat, back, red 1 18-3771, 18-3781 to 18-4617 NM!
inclusive
12293-28 H CUSHION ASSEMBLY – Front seat, back, Cadillac red 1 NM!
12293-42 CUSHION ASSEMBLY – Front seat, back, red 1 18-5804, 18-6118 and up NM!
-20 -13614-000 C ENVELOPE – Airworthiness certificate, brown 1 20.39
13614-03 D ENVELOPE – Airworthiness certificate, green 1 NM!
13614-06 ENVELOPE – Airworthiness certificate, black 1 (PA-18 only) 18-3771, 18-3781 NM!
and up
-21 10763-10 C CUSHION ASSEMBLY – Rear seat, bottom, brown 1 NM!
10763-16 D CUSHION ASSEMBLY – Rear seat, bottom, green 1 NM!
10763-22 CUSHION ASSEMBLY – Rear seat, bottom, red 1 18-3771, 18-3781 to 18-4617 NM!
inclusive
10763-28 CUSHION ASSEMBLY – Rear seat, bottom, Cadillac red 1 18-4618 to 18-5803 inclusive, NM!
18-5805 to 18-6115
inclusive
10763-40 CUSHION ASSEMBLY – Rear seat, bottom, red 1 18-5804, 18-6116 and up NM!
-22 12289-00 C CUSHION ASSEMBLY – Rear seat, back, brown 1 (PA-18 only) NM!
12289-07 C CUSHION ASSEMBLY – Rear seat, back, brown 1 (PA-18A only) NM!
12289-09 D CUSHION ASSEMBLY – Rear seat, back, green 1 NM!

12289-13 E CUSHION ASSEMBLY – Rear seat, back, green 1 NM!
12289-15 F CUSHION ASSEMBLY – Rear seat, back, red 1 NM!
12289-19 G CUSHION ASSEMBLY – Rear seat, back, red 1 NM!
12289-23 CUSHION ASSEMBLY – Rear seat, back, Cadillac red 1 (PA-18A only) 18-4618 to NM!
18-5803, 18-5805 to
18-6115 inclusive
12289-21 CUSHION ASSEMBLY – Rear seat, back, Cadillac red 1 (PA-18 only) 18-4618 to NM!
18-5803, 18-5805 to
18-6115 inclusive
12289-33 CUSHION ASSEMBLY – Rear seat, back, red 1 (PA-18A only) 18-6116 and up NM!
12289-37 CUSHION ASSEMBLY – Rear seat, back, red 1 (PA-18 only) 18-5804, 18-6118 NM!
and up
-23 U12268-011 SEAT BASE ASSEMBLY – Front, 105hp, 125hp, 135hp, 150hp 1 1488.05
-12268-000 SEAT BASE ASSEMBLY – Front, 95hp 1 477.98
-24 U12079-000 HANDLE ASSEMBLY – Seat release 1 76.87
-25 12269-00 ROD – Extension 1 NM!
-26 U83302-013 SPRING – Return (487-283) 1 16.1
-27 -12914-000 PIN – Stop 1 7.29
-28 AA55487-2 CLIP – Fastener, front and rear seat attachment (5 per ship PA-18A) 3 0.58
-29 U12774-000 LEVER ASSEMBLY – Flap control, 105hp, 125hp, 135hp, 150hp 1 722.15
-30 U11699-006 PLUNGER – Flap control, 105hp, 125hp, 135hp, 150hp 1 114.08

38
