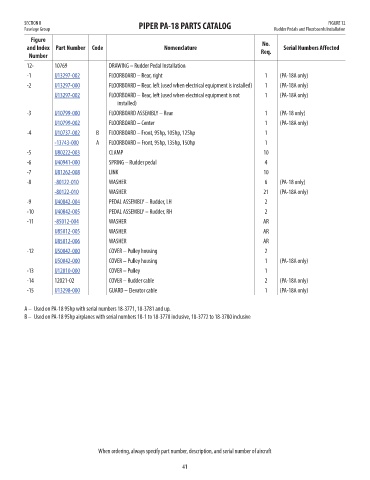

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 12
Fuselage Group Rudder Pedals and Floorboards Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
12- 10769 DRAWING – Rudder Pedal Installation NM!
-1 U13297-002 FLOORBOARD – Rear, right 1 (PA-18A only) 181.92
-2 U13297-000 FLOORBOARD – Rear, left (used when electrical equipment is installed) 1 (PA-18A only) 181.92
U13297-002 FLOORBOARD – Rear, left (used when electrical equipment is not 1 (PA-18A only) 181.92
installed)
-3 U10799-000 FLOORBOARD ASSEMBLY – Rear 1 (PA-18 only) 192.66
U10799-002 FLOORBOARD – Center 1 (PA-18A only) 253.3
-4 U10737-002 B FLOORBOARD – Front, 95hp, 105hp, 125hp 1 153.28
-13743-000 A FLOORBOARD – Front, 95hp, 135hp, 150hp 1 122.83

-5 U80222-003 CLAMP 10 19.34
-6 U40941-000 SPRING – Rudder pedal 4 11.31
-7 U81262-008 LINK 10 12.3
-8 -80122-010 WASHER 6 (PA-18 only) 4.81
-80122-010 WASHER 21 (PA-18A only) 4.81
-9 U40842-004 PEDAL ASSEMBLY – Rudder, LH 2 158.36
-10 U40842-005 PEDAL ASSEMBLY – Rudder, RH 2 169.41
-11 -85012-004 WASHER AR 2.38
U85012-005 WASHER AR 2.49
U85012-006 WASHER AR 3.33
-12 U50042-000 COVER – Pulley housing 2 35.53
U50042-000 COVER – Pulley housing 1 (PA-18A only) 35.53
-13 U12810-000 COVER – Pulley 1 53.79
-14 12021-02 COVER – Rudder cable 2 (PA-18A only) NM!
-15 U13298-000 GUARD – Elevator cable 1 (PA-18A only) 153.13

A – Used on PA-18 95hp with serial numbers 18-3771, 18-3781 and up.
B – Used on PA-18 95hp airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive

When ordering, always specify part number, description, and serial number of aircraft

41
