Page 47 - Piper PA-18 Super Cub Interactive Parts Catalog

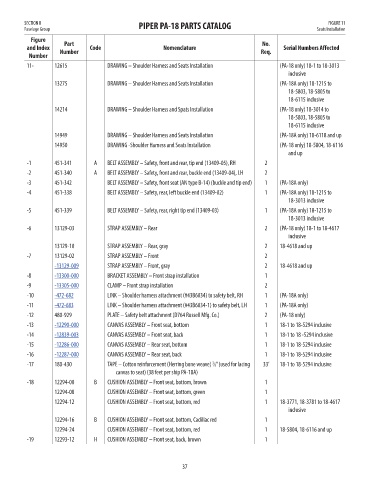

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 11
Fuselage Group Seats Installation
Figure
No.
Part
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
11- 12615 DRAWING – Shoulder Harness and Seats Installation (PA-18 only) 18-1 to 18-3013 NM!
inclusive
13275 DRAWING – Shoulder Harness and Seats Installation (PA-18A only) 18-1215 to NM!
18-5803, 18-5805 to
18-6115 inclusive
14214 DRAWING – Shoulder Harness and Spats Installation (PA-18 only) 18-3014 to NM!
18-5803, 18-5805 to
18-6115 inclusive
14949 DRAWING – Shoulder Harness and Seats Installation (PA-18A only) 18-6118 and up NM!
14950 DRAWING -Shoulder Harness and Seats Installation (PA-18 only) 18-5804, 18-6116 NM!
and up
-1 451-341 A BELT ASSEMBLY – Safety, front and rear, tip end (13409-05), RH 2 NM!
-2 451-340 A BELT ASSEMBLY – Safety, front and rear, buckle end (13409-04), LH 2 NM!
-3 451-342 BELT ASSEMBLY – Safety, front seat (AN type B-14) (buckle and tip end) 1 (PA-18A only) NM!
-4 451-338 BELT ASSEMBLY – Safety, rear, left buckle end (13409-02) 1 (PA-18A only) 18-1215 to NM!
18-3013 inclusive
-5 451-339 BELT ASSEMBLY – Safety, rear, right tip end (13409-03) 1 (PA-18A only) 18-1215 to NM!
18-3013 inclusive
-6 13129-03 STRAP ASSEMBLY – Rear 2 (PA-18 only) 18-1 to 18-4617 NM!
inclusive
13129-10 STRAP ASSEMBLY – Rear, gray 2 18-4618 and up NM!
-7 13129-02 STRAP ASSEMBLY – Front 2 NM!
-13129-009 STRAP ASSEMBLY – Front, gray 2 18-4618 and up 201.01
-8 -13300-000 BRACKET ASSEMBLY – Front strap installation 1 190.27
-9 -13305-000 CLAMP – Front strap installation 2 23.43
-10 -472-682 LINK – Shoulder harness attachment (#43B6034) to safety belt, RH 1 (PA-18A only) 14.03
-11 -472-683 LINK – Shoulder harness attachment (#43B6034-1) to safety belt, LH 1 (PA-18A only) 14.3
-12 480-929 PLATE – Safety belt attachment (D764 Russell Mfg. Co.) 2 (PA-18 only) NM!
-13 -12290-000 CANVAS ASSEMBLY – Front seat, bottom 1 18-1 to 18-5294 inclusive 53.46
-14 -12839-003 CANVAS ASSEMBLY – Front seat, back 1 18-1 to 18 -5294 inclusive 53.79
-15 -12286-000 CANVAS ASSEMBLY – Rear seat, bottom 1 18-1 to 18-5294 inclusive 51.05
-16 -12287-000 CANVAS ASSEMBLY – Rear seat, back 1 18-1 to 18-5294 inclusive 47.59
-17 180-430 TAPE – Cotton reinforcement (Herring bone weave) ⁄8” (used for lacing 33’ 18-1 to 18-5294 inclusive NM!
3
canvas to seat) (38 feet per ship PA-18A)
-18 12294-00 B CUSHION ASSEMBLY – Front seat, bottom, brown 1 NM!
12294-08 CUSHION ASSEMBLY – Front seat, bottom, green 1 NM!
12294-12 CUSHION ASSEMBLY – Front seat, bottom, red 1 18-3771, 18-3781 to 18-4617 NM!
inclusive
12294-16 B CUSHION ASSEMBLY – Front seat, bottom, Cadillac red 1 NM!
12294-24 CUSHION ASSEMBLY – Front seat, bottom, red 1 18-5804, 18-6116 and up NM!
-19 12293-12 H CUSHION ASSEMBLY – Front seat, back, brown 1 NM!

37
