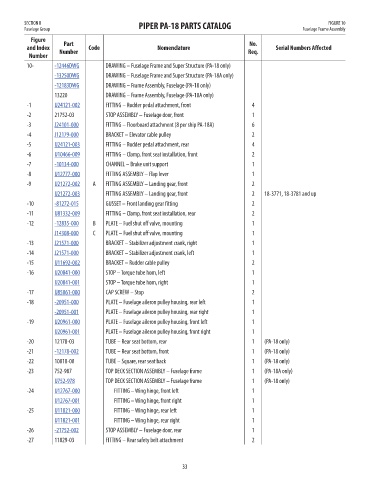

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 10
Fuselage Group Fuselage Frame Assembly
Figure
No.
Part
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
10- -12446DWG DRAWING – Fuselage Frame and Super Structure (PA-18 only) 65.97
-13250DWG DRAWING – Fuselage Frame and Super Structure (PA-18A only) 65.97
-12183DWG DRAWING – Frame Assembly, Fuselage (PA-18 only) 65.97
13220 DRAWING – Frame Assembly, Fuselage (PA-18A only) NM!
-1 U24121-002 FITTING – Rudder pedal attachment, front 4 8.24
-2 21752-03 STOP ASSEMBLY – Fuselage door, front 1 NM!
-3 J24101-000 FITTING – Floorboard attachment (8 per ship PA-18A) 6 5.88
-4 J12179-000 BRACKET – Elevator cable pulley 2 29.53
-5 U24121-003 FITTING – Rudder pedal attachment, rear 4 8.24
-6 U10466-009 FITTING – Clamp, front seat installation, front 2 55.72
-7 -10134-000 CHANNEL – Brake unit support 1 32.48
-8 U12777-000 FITTING ASSEMBLY – Flap lever 1 51.82
-9 U21272-002 A FITTING ASSEMBLY – Landing gear, front 2 177.6
U21272-003 FITTING ASSEMBLY – Landing gear, front 2 18-3771, 18-3781 and up 225.64
-10 -81272-015 GUSSET – Front landing gear fitting 2 5.57
-11 U81332-009 FITTING – Clamp, front seat installation, rear 2 22.36
-12 -12835-000 B PLATE – Fuel shut off valve, mounting 1 29.21
J14308-000 C PLATE – Fuel shut off valve, mounting 1 33.58
-13 J21571-000 BRACKET – Stabilizer adjustment crank, right 1 14.52
-14 J21571-000 BRACKET – Stabilizer adjustment crank, left 1 14.52
-15 U11692-002 BRACKET – Rudder cable pulley 2 17.86
-16 U20841-000 STOP – Torque tube horn, left 1 81.33
U20841-001 STOP – Torque tube horn, right 1 80.12
-17 U85061-000 CAP SCREW – Stop 2 11.63

-18 -20951-000 PLATE – Fuselage aileron pulley housing, rear left 1 13.36
-20951-001 PLATE – Fuselage aileron pulley housing, rear right 1 13.36
-19 U20961-000 PLATE – Fuselage aileron pulley housing, front left 1 29.08
U20961-001 PLATE – Fuselage aileron pulley housing, front right 1 12.8
-20 12178-03 TUBE – Rear seat bottom, rear 1 (PA-18 only) NM!
-21 -12178-002 TUBE – Rear seat bottom, front 1 (PA-18 only) 126.87
-22 10818-00 TUBE – Square, rear seat back 1 (PA-18 only) NM!
-23 752-987 TOP DECK SECTION ASSEMBLY – Fuselage frame 1 (PA-18A only) NM!
U752-978 TOP DECK SECTION ASSEMBLY – Fuselage frame 1 (PA-18 only) 2270.67
-24 U12767-000 FITTING – Wing hinge, front left 1 160.99
U12767-001 FITTING – Wing hinge, front right 1 160.99
-25 U11821-000 FITTING – Wing hinge, rear left 1 46.17
U11821-001 FITTING – Wing hinge, rear right 1 46.17
-26 -21752-002 STOP ASSEMBLY – Fuselage door, rear 1 70.84
-27 11829-03 FITTING – Rear safety belt attachment 2 NM!

33
