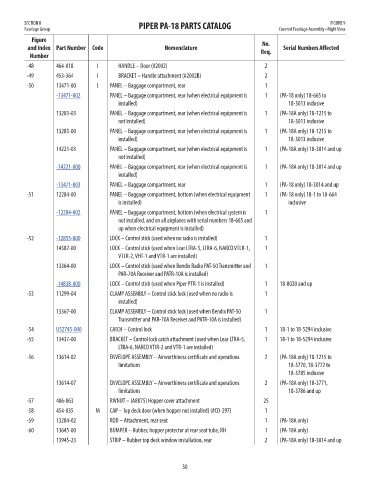

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 9
Fuselage Group Covered Fuselage Assembly • Right View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-48 464-018 I HANDLE – Door (#2002) 2 NM!
-49 453-364 I BRACKET – Handle attachment (#2002B) 2 NM!
-50 13471-00 L PANEL – Baggage compartment, rear 1 NM!
-13471-002 PANEL – Baggage compartment, rear (when electrical equipment is 1 (PA-18 only) 18-665 to 172.71
installed) 18-3013 inclusive
13283-03 PANEL – Baggage compartment, rear (when electrical equipment is 1 (PA-18A only) 18-1215 to NM!
not installed) 18-3013 inclusive
13283-00 PANEL – Baggage compartment, rear (when electrical equipment is 1 (PA-18A only) 18-1215 to NM!
installed) 18-3013 inclusive
14221-03 PANEL – Baggage compartment, rear (when electrical equipment is 1 (PA-18A only) 18-3014 and up NM!
not installed)
-14221-000 PANEL – Baggage compartment, rear (when electrical equipment is 1 (PA-18A only) 18-3014 and up 139.18
installed)
-13471-003 PANEL – Baggage compartment, rear 1 (PA-18 only) 18-3014 and up 161.27
-51 12284-00 PANEL – Baggage compartment, bottom (when electrical equipment 1 (PA-18 only) 18-1 to 18-664 NM!
is installed) inclusive
-12284-002 PANEL – Baggage compartment, bottom (when electrical system is 1 122.83
not installed, and on all airplanes with serial numbers 18-665 and
up when electrical equipment is installed)
-52 -12855-000 LOCK – Control stick (used when no radio is installed) 1 43.42
14582-00 LOCK – Control stick (used when Lear LTRA-5, LTRA-6, NARCO VTLR-1, 1 NM!
VTLR-2, VHT-1 and VTR-1 are installed)
13364-00 LOCK – Control stick (used when Bendix Radio PAT-50 Transmitter and 1 NM!
PAR-70A Receiver and PATR-10A is installed)
-14838-000 LOCK – Control stick (used when Piper PTR-1 is installed) 1 18-8020 and up 363.09
-53 11299-04 CLAMP ASSEMBLY – Control stick lock (used when no radio is 1 NM!
installed)
13367-00 CLAMP ASSEMBLY – Control stick lock (used when Bendix PAT-50 1 NM!
Transmitter and PAR-70A Receiver and PATR-10A is installed)
-54 U52745-000 CATCH – Control lock 1 18-1 to 18-5294 inclusive 5.07
-55 13437-00 BRACKET – Control lock catch attachment (used when Lear LTRA-5, 1 18-1 to 18-5294 inclusive NM!
LTRA-6, NARCO VTIR-2 and VTR-1 are installed)
-56 13614-02 ENVELOPE ASSEMBLY – Airworthiness certificate and operations 2 (PA-18A only) 18-1215 to NM!
limitations 18-3770, 18-3772 to
18-3785 inclusive
13614-07 ENVELOPE ASSEMBLY – Airworthiness certificate and operations 2 (PA-18A only) 18-3771, NM!
limitations 18-3786 and up
-57 406-863 RIVNUT – (A8K75) Hopper cover attachment 25 NM!
-58 454-035 M CAP – Top deck door (when hopper not installed) (#CD-297) 1 NM!
-59 13284-02 ROD – Attachment, rear seat 1 (PA-18A only) NM!
-60 13645-00 BUMPER – Rubber, hopper protector at rear seat tube, RH 1 (PA-18A only) NM!
13945-23 STRIP – Rubber top deck window installation, rear 2 (PA-18A only) 18-3014 and up NM!

30
