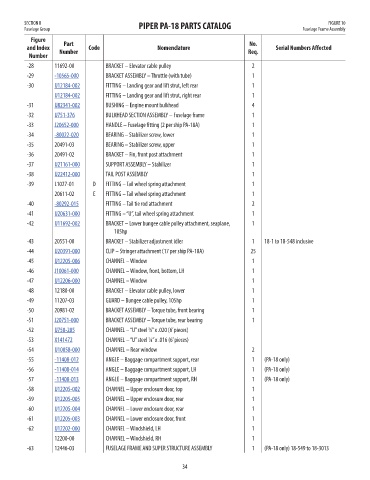

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 10
Fuselage Group Fuselage Frame Assembly
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-28 11692-00 BRACKET – Elevator cable pulley 2 NM!
-29 -10565-000 BRACKET ASSEMBLY – Throttle (with tube) 1 188.29
-30 U12184-002 FITTING – Landing gear and lift strut, left rear 1 244.53
U12184-002 FITTING – Landing gear and lift strut, right rear 1 244.53
-31 U82341-002 BUSHING – Engine mount bulkhead 4 30.49
-32 U751-376 BULKHEAD SECTION ASSEMBLY – Fuselage frame 1 1437.45
-33 J20652-000 HANDLE – Fuselage fitting (2 per ship PA-18A) 1 46.29
-34 -80022-020 BEARING – Stabilizer screw, lower 1 12.61
-35 20491-03 BEARING – Stabilizer screw, upper 1 NM!
-36 20491-02 BRACKET – Fin, front post attachment 1 NM!
-37 U21161-000 SUPPORT ASSEMBLY – Stabilizer 1 238.34
-38 U22412-000 TAIL POST ASSEMBLY 1 176.36
-39 L1027-01 D FITTING – Tail wheel spring attachment 1 NM!
20611-02 E FITTING – Tail wheel spring attachment 1 NM!
-40 -80292-015 FITTING – Tail tie rod attachment 2 18.52
-41 U20631-000 FITTING – “U”, tail wheel spring attachment 1 43.69
-42 U11692-002 BRACKET – Lower bungee cable pulley attachment, seaplane, 1 17.86
105hp
-43 20551-00 BRACKET – Stabilizer adjustment idler 1 18-1 to 18-548 inclusive NM!
-44 U20391-000 CLIP – Stringer attachment (17 per ship PA-18A) 25 3.48
-45 U12205-006 CHANNEL – Window 1 21.61
-46 J10061-000 CHANNEL – Window, front, bottom, LH 1 24.31
-47 U12206-000 CHANNEL – Window 1 34.33
-48 12180-00 BRACKET – Elevator cable pulley, lower 1 NM!
-49 11207-03 GUARD – Bungee cable pulley, 105hp 1 NM!
-50 20981-02 BRACKET ASSEMBLY – Torque tube, front bearing 1 NM!
-51 J20751-000 BRACKET ASSEMBLY – Torque tube, rear bearing 1 228.11
-52 U750-285 CHANNEL – “U” steel ⁄8” x .020 (6’ pieces) 11.67
3
-53 X141472 CHANNEL – “U” steel ¼” x .016 (6’ pieces) 8.26
-54 U10058-000 CHANNEL – Rear window 2 126.81
-55 -11408-012 ANGLE – Baggage compartment support, rear 1 (PA-18 only) 26.92
-56 -11408-014 ANGLE – Baggage compartment support, LH 1 (PA-18 only) 29.89
-57 -11408-013 ANGLE – Baggage compartment support, RH 1 (PA-18 only) 16.27
-58 U12205-002 CHANNEL – Upper enclosure door, top 1 26.56
-59 U12205-005 CHANNEL – Upper enclosure door, rear 1 33.79

-60 U12205-004 CHANNEL – Lower enclosure door, rear 1 31.72
-61 U12205-003 CHANNEL – Lower enclosure door, front 1 39.31
-62 U12202-000 CHANNEL – Windshield, LH 1 60.11
12200-00 CHANNEL – Windshield, RH 1 NM!
-63 12446-03 FUSELAGE FRAME AND SUPER STRUCTURE ASSEMBLY 1 (PA-18 only) 18-549 to 18-3013 NM!

34
