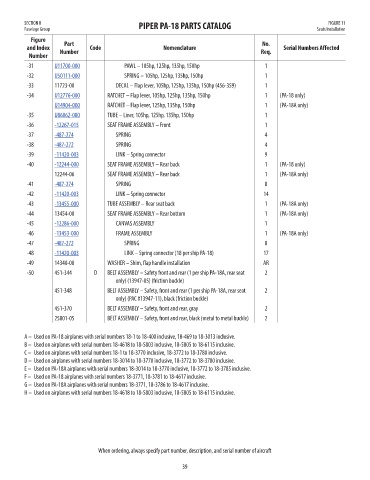

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 11
Fuselage Group Seats Installation
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-31 U11700-000 PAWL – 105hp, 125hp, 135hp, 150hp 1 26.17
-32 U50111-000 SPRING – 105hp, 125hp, 135hp, 150hp 1 3.83
-33 11723-00 DECAL – Flap lever, 105hp, 125hp, 135hp, 150hp (456-359) 1 NM!
-34 U12776-000 RATCHET – Flap lever, 105hp, 125hp, 135hp, 150hp 1 (PA-18 only) 44.18
U14904-000 RATCHET – Flap lever, 125hp, 135hp, 150hp 1 (PA-18A only) 37.13
-35 U86062-080 TUBE – Liner, 105hp, 125hp, 135hp, 150hp 1 129.57
-36 -12267-015 SEAT FRAME ASSEMBLY – Front 1 1892.29
-37 -487-274 SPRING 4 67.76
-38 -487-272 SPRING 4 42.5
-39 -11420-003 LINK – Spring connector 9 6.8
-40 -12244-000 SEAT FRAME ASSEMBLY – Rear back 1 (PA-18 only) 519.14
12244-06 SEAT FRAME ASSEMBLY – Rear back 1 (PA-18A only) NM!
-41 -487-274 SPRING 8 67.76
-42 -11420-003 LINK – Spring connector 14 6.8
-43 -13455-000 TUBE ASSEMBLY – Rear seat back 1 (PA-18A only) 82.16
-44 13454-00 SEAT FRAME ASSEMBLY – Rear bottom 1 (PA-18A only) NM!
-45 -12286-000 CANVAS ASSEMBLY 1 51.05
-46 -13453-000 FRAME ASSEMBLY 1 (PA-18A only) 526.69
-47 -487-272 SPRING 8 42.5
-48 -11420-003 LINK – Spring connector (18 per ship PA-18) 17 6.8
-49 14340-00 WASHER – Shim, flap handle installation AR NM!
-50 451-344 D BELT ASSEMBLY – Safety front and rear (1 per ship PA-18A, rear seat 2 NM!
only) (13947-05) (friction buckle)
451-348 BELT ASSEMBLY – Safety, front and rear (1 per ship PA-18A, rear seat 2 NM!
only) (PAC #13947-11), black (friction buckle)
451-370 BELT ASSEMBLY – Safety, front and rear, gray 2 NM!
25801-05 BELT ASSEMBLY – Safety, front and rear, black (metal to metal buckle) 2 NM!

A – Used on PA-18 airplanes with serial numbers 18-1 to 18-400 inclusive, 18-469 to 18-3013 inclusive.
B – Used on airplanes with serial numbers 18-4618 to 18-5803 inclusive, 18-5805 to 18-6115 inclusive.
C – Used on airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
D – Used on airplanes with serial numbers 18-3014 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
E – Used on PA-18A airplanes with serial numbers 18-3014 to 18-3770 inclusive, 18-3772 to 18-3785 inclusive.
F – Used on PA-18 airplanes with serial numbers 18-3771, 18-3781 to 18-4617 inclusive.
G – Used on PA-18A airplanes with serial numbers 18-3771, 18-3786 to 18-4617 inclusive.
H – Used on airplanes with serial numbers 18-4618 to 18-5803 inclusive, 18-5805 to 18-6115 inclusive.

When ordering, always specify part number, description, and serial number of aircraft

39
