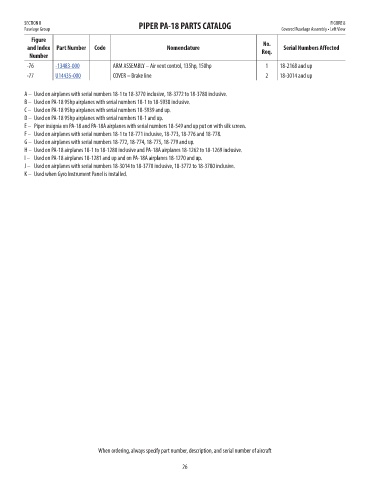

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 8
Fuselage Group Covered Fuselage Assembly • Left View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-76 -13483-000 ARM ASSEMBLY – Air vent control, 135hp, 150hp 1 18-2168 and up 75.53
-77 U14435-000 COVER – Brake line 2 18-3014 and up 108.06

A – Used on airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
B – Used on PA-18 95hp airplanes with serial numbers 18-1 to 18-5938 inclusive.
C – Used on PA-18 95hp airplanes with serial numbers 18-5939 and up.
D – Used on PA-18 95hp airplanes with serial numbers 18-1 and up.
E – Piper insignia on PA-18 and PA-18A airplanes with serial numbers 18-549 and up put on with silk screen.
F – Used on airplanes with serial numbers 18-1 to 18-771 inclusive, 18-773, 18-776 and 18-778.
G – Used on airplanes with serial numbers 18-772, 18-774, 18-775, 18-779 and up.
H – Used on PA-18 airplanes 18-1 to 18-1280 inclusive and PA-18A airplanes 18-1262 to 18-1269 inclusive.
I – Used on PA-18 airplanes 18-1281 and up and on PA-18A airplanes 18-1270 and up.
J – Used on airplanes with serial numbers 18-3014 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
K – Used when Gyro Instrument Panel is installed.

When ordering, always specify part number, description, and serial number of aircraft

26
