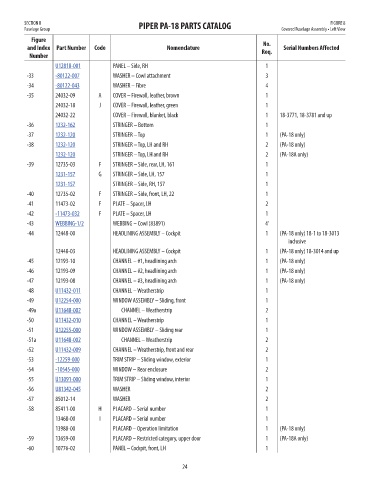

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 8
Fuselage Group Covered Fuselage Assembly • Left View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
U12818-001 PANEL – Side, RH 1 86.35
-33 -80122-007 WASHER – Cowl attachment 3 6.11
-34 -80122-043 WASHER – Fibre 4 4.51
-35 24032-09 A COVER – Firewall, leather, brown 1 NM!
24032-18 J COVER – Firewall, leather, green 1 NM!
24032-22 COVER – Firewall, blanket, black 1 18-3771, 18-3781 and up NM!
-36 1232-162 STRINGER – Bottom 1 68.4
-37 1232-120 STRINGER – Top 1 (PA-18 only) 55.75
-38 1232-120 STRINGER – Top, LH and RH 2 (PA-18 only) 55.75
1232-120 STRINGER – Top, LH and RH 2 (PA-18A only) 55.75
-39 12735-03 F STRINGER – Side, rear, LH, 161 1 NM!
1231-157 G STRINGER – Side, LH, 157 1 34.2
1231-157 STRINGER – Side, RH, 157 1 34.2
-40 12735-02 F STRINGER – Side, front, LH, 22 1 NM!
-41 11473-02 F PLATE – Spacer, LH 2 NM!
-42 -11473-032 F PLATE – Spacer, LH 1 4.36
-43 WEBBING-1/2 WEBBING – Cowl (83891) 4’ 0.8
-44 12448-00 HEADLINING ASSEMBLY – Cockpit 1 (PA-18 only) 18-1 to 18-3013 NM!
inclusive
12448-03 HEADLINING ASSEMBLY – Cockpit 1 (PA-18 only) 18-3014 and up NM!
-45 12193-10 CHANNEL – #1, headlining arch 1 (PA-18 only) NM!
-46 12193-09 CHANNEL – #2, headlining arch 1 (PA-18 only) NM!
-47 12193-08 CHANNEL – #3, headlining arch 1 (PA-18 only) NM!
-48 U11432-011 CHANNEL – Weatherstrip 1 52.68
-49 U12254-000 WINDOW ASSEMBLY – Sliding, front 1 499.61
-49a U11648-002 CHANNEL – Weatherstrip 2 91.55
-50 U11432-010 CHANNEL – Weatherstrip 1 54.85
-51 U12255-000 WINDOW ASSEMBLY – Sliding rear 1 416.06
-51a U11648-002 CHANNEL – Weatherstrip 2 91.55
-52 U11432-009 CHANNEL – Weatherstrip, front and rear 2 40.74
-53 -12259-000 TRIM STRIP – Sliding window, exterior 1 71.68
-54 -10545-000 WINDOW – Rear enclosure 2 54.2
-55 U13091-000 TRIM STRIP – Sliding window, interior 1 69.48
-56 U81342-045 WASHER 2 4.62
-57 85012-14 WASHER 2 NM!

-58 85411-00 H PLACARD – Serial number 1 NM!
13468-00 I PLACARD – Serial number 1 NM!
13988-00 PLACARD – Operation limitation 1 (PA-18 only) NM!
-59 13659-00 PLACARD – Restricted category, upper door 1 (PA-18A only) NM!
-60 10776-02 PANEL – Cockpit, front, LH 1 NM!

24
