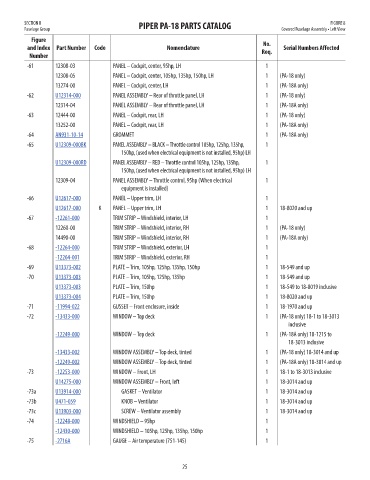

Page 35 - Piper PA-18 Super Cub Interactive Parts Catalog

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 8
Fuselage Group Covered Fuselage Assembly • Left View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-61 12308-03 PANEL – Cockpit, center, 95hp, LH 1 NM!
12308-05 PANEL – Cockpit, center, 105hp, 135hp, 150hp, LH 1 (PA-18 only) NM!
13274-00 PANEL – Cockpit, center, LH 1 (PA-18A only) NM!
-62 U12314-000 PANEL ASSEMBLY – Rear of throttle panel, LH 1 (PA-18 only) 151.82
12314-04 PANEL ASSEMBLY – Rear of throttle panel, LH 1 (PA-18A only) NM!
-63 12444-00 PANEL – Cockpit, rear, LH 1 (PA-18 only) NM!
13252-00 PANEL – Cockpit, rear, LH 1 (PA-18A only) NM!
-64 AN931-10-14 GROMMET 1 (PA-18A only) 2
-65 U12309-000BK PANEL ASSEMBLY – BLACK – Throttle control 105hp, 125hp, 135hp, 1 428.85
150hp, (used when electrical equipment is not installed, 95hp) LH
U12309-000RD PANEL ASSEMBLY – RED – Throttle control 105hp, 125hp, 135hp, 1 428.85
150hp, (used when electrical equipment is not installed, 95hp) LH
12309-04 PANEL ASSEMBLY – Throttle control, 95hp (When electrical 1 NM!
equipment is installed)
-66 U12617-000 PANEL – Upper trim, LH 1 156.84
U12617-000 K PANEL – Upper trim, LH 1 18-8020 and up 156.84
-67 -12261-000 TRIM STRIP – Windshield, interior, LH 1 31.76
12260-00 TRIM STRIP – Windshield, interior, RH 1 (PA-18 only) NM!
14490-00 TRIM STRIP – Windshield, interior, RH 1 (PA-18A only) NM!
-68 -12264-000 TRIM STRIP – Windshield, exterior, LH 1 20.47
-12264-001 TRIM STRIP – Windshield, exterior, RH 1 19.31
-69 U13373-002 PLATE – Trim, 105hp, 125hp, 135hp, 150hp 1 18-549 and up 31.14
-70 U13373-003 PLATE – Trim, 105hp, 125hp, 135hp 1 18-549 and up 31.14
U13373-003 PLATE – Trim, 150hp 1 18-549 to 18-8019 inclusive 31.14
U13373-004 PLATE – Trim, 150hp 1 18-8020 and up 48.46
-71 -11994-022 GUSSET – Front enclosure, inside 1 18-1970 and up 5.14
-72 -13433-000 WINDOW – Top deck 1 (PA-18 only) 18-1 to 18-3013 169.29
inclusive
-12249-000 WINDOW – Top deck 1 (PA-18A only) 18-1215 to 169.29
18-3013 inclusive
-13433-002 WINDOW ASSEMBLY – Top deck, tinted 1 (PA-18 only) 18-3014 and up 169.29
-12249-002 WINDOW ASSEMBLY – Top deck, tinted 1 (PA-18A only) 18-3014 and up 169.29
-73 -12253-000 WINDOW – Front, LH 1 18-1 to 18-3013 inclusive 48.26
U14275-000 WINDOW ASSEMBLY – Front, left 1 18-3014 and up 393.96
-73a U13914-000 GASKET – Ventilator 1 18-3014 and up 9.58
-73b U471-059 KNOB – Ventilator 1 18-3014 and up 4.13
-73c U13903-000 SCREW – Ventilator assembly 1 18-3014 and up 6.28
-74 -12248-000 WINDSHIELD – 95hp 1 327.44
-12430-000 WINDSHIELD – 105hp, 125hp, 135hp, 150hp 1 327.44
-75 -2716A GAUGE – Air temperature (751-145) 1 82.28

25
