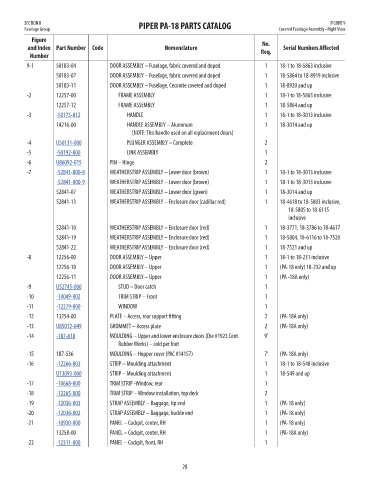

Page 38 - Piper PA-18 Super Cub Interactive Parts Catalog

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 9
Fuselage Group Covered Fuselage Assembly • Right View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
9-1 50183-04 DOOR ASSEMBLY – Fuselage, fabric covered and doped 1 18-1 to 18-5863 inclusive NM!
50183-07 DOOR ASSEMBLY – Fuselage, fabric covered and doped 1 18-5864 to 18-8919 inclusive NM!
50183-11 DOOR ASSEMBLY – Fuselage, Ceconite covered and doped 1 18-8920 and up NM!
-2 12257-00 FRAME ASSEMBLY 1 18-1 to 18-5863 inclusive NM!
12257-12 FRAME ASSEMBLY 1 18-5864 and up NM!
-3 -50173-012 HANDLE 1 18-1 to 18-3013 inclusive 15.94
14216-00 HANDLE ASSEMBLY – Aluminum 1 18-3014 and up NM!
(NOTE: This handle used on all replacement doors)
-4 U50131-000 PLUNGER ASSEMBLY – Complete 2 87.38

-5 -50192-000 LINK ASSEMBLY 1 83.57
-6 U86092-015 PIN – Hinge 2 8.9
-7 -52841-000-8 WEATHERSTRIP ASSEMBLY – Lower door (brown) 1 18-1 to 18-3013 inclusive 28.38
-52841-000-9 WEATHERSTRIP ASSEMBLY – Lower door (brown) 1 18-1 to 18-3013 inclusive 28.38
52841-07 WEATHERSTRIP ASSEMBLY – Lower door (green) 1 18-3014 and up NM!
52841-13 WEATHERSTRIP ASSEMBLY – Enclosure door (cadillac red) 1 18-4618 to 18-5803 inclusive, NM!
18-5805 to 18-6115
inclusive
52841-10 WEATHERSTRIP ASSEMBLY – Enclosure door (red) 1 18-3771, 18-3786 to 18-4617 NM!
52841-19 WEATHERSTRIP ASSEMBLY – Enclosure door (red) 1 18-5804, 18-6116 to 18-7520 NM!
52841-22 WEATHERSTRIP ASSEMBLY – Enclosure door (red) 1 18-7521 and up NM!
-8 12256-00 DOOR ASSEMBLY – Upper 1 18-1 to 18-231 inclusive NM!
12256-10 DOOR ASSEMBLY – Upper 1 (PA-18 only) 18-232 and up NM!
12256-11 DOOR ASSEMBLY – Upper 1 (PA -18A only) NM!
-9 U52745-000 STUD – Door catch 1 5.07
-10 -10049-002 TRIM STRIP – Front 1 42.04
-11 -12279-000 WINDOW 1 90.59
-12 13254-00 PLATE – Access, rear support fitting 2 (PA-18A only) NM!
-13 U85012-049 GROMMET – Access plate 2 (PA-18A only) 5.1
-14 -187-610 MOULDING – Upper and lower enclosure doors (Die #1923 Cont. 9’ 1.41
Rubber Works) – sold per foot
-15 187-536 MOULDING – Hopper cover (PAC #14157) 7’ (PA-18A only) NM!
-16 -12266-003 STRIP – Moulding attachment 1 18-1 to 18-548 inclusive 3.77
U13093-000 STRIP – Moulding attachment 1 18-549 and up 58.31
-17 -10668-000 TRIM STRIP -Window, rear 1 26.7
-18 -12265-000 TRIM STRIP – Window installation, top deck 2 29.72
-19 -12036-003 STRAP ASSEMBLY – Baggage, tip end 1 (PA-18 only) 20.92
-20 -12036-002 STRAP ASSEMBLY – Baggage, buckle end 1 (PA-18 only) 19.93
-21 -10930-000 PANEL – Cockpit, center, RH 1 (PA-18 only) 101.2
13258-00 PANEL – Cockpit, center, RH 1 (PA-18A only) NM!
-22 -12311-000 PANEL – Cockpit, front, RH 1 148.3

28
