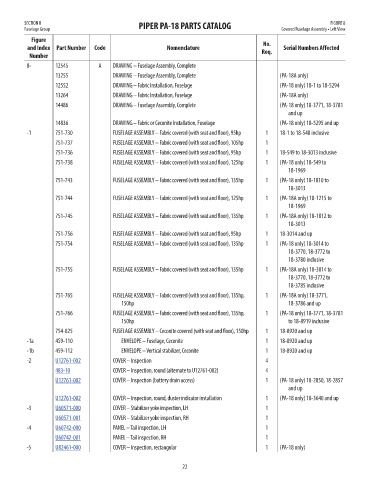

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 8
Fuselage Group Covered Fuselage Assembly • Left View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
8- 12545 A DRAWING – Fuselage Assembly, Complete NM!
13255 DRAWING – Fuselage Assembly, Complete (PA-18A only) NM!
12552 DRAWING – Fabric Installation, Fuselage (PA-18 only) 18-1 to 18-5294 NM!
13264 DRAWING – Fabric Installation, Fuselage (PA-18A only) NM!
14486 DRAWING – Fuselage Assembly, Complete (PA-18 only) 18-3771, 18-3781 NM!
and up
14836 DRAWING – Fabric or Ceconite Installation, Fuselage (PA-18 only) 18-5295 and up NM!
-1 751-730 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 95hp 1 18-1 to 18-548 inclusive NM!
751-737 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 105hp 1 NM!

751-736 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 95hp 1 18-549 to 18-3013 inclusive NM!
751-738 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 125hp 1 (PA-18 only) 18-549 to NM!
18-1969
751-743 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 135hp 1 (PA-18 only) 18-1810 to NM!
18-3013
751-744 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 125hp 1 (PA-18A only) 18-1215 to NM!
18-1969
751-745 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 135hp 1 (PA-18A only) 18-1812 to NM!
18-3013
751-756 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 95hp 1 18-3014 and up NM!
751-754 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 135hp 1 (PA-18 only) 18-3014 to NM!
18-3770, 18-3772 to
18-3780 inclusive
751-755 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 135hp 1 (PA-18A only) 18-3014 to NM!
18-3770, 18-3772 to
18-3785 inclusive
751-765 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 135hp, 1 (PA-18A only) 18-3771, NM!
150hp 18-3786 and up
751-766 FUSELAGE ASSEMBLY – Fabric covered (with seat and floor), 135hp, 1 (PA-18 only) 18-3771, 18-3781 NM!
150hp to 18-8919 inclusive
754-825 FUSELAGE ASSEMBLY – Ceconite covered (with seat and floor), 150hp 1 18-8920 and up NM!

-1a 459-110 ENVELOPE – Fuselage, Ceconite 1 18-8920 and up NM!
-1b 459-112 ENVELOPE – Vertical stabilizer, Ceconite 1 18-8920 and up NM!
-2 U12761-002 COVER – Inspection 4 46.86
483-10 COVER – Inspection, round (alternate to U12761-002) 4 2.25
U12761-002 COVER – Inspection (battery drain access) 1 (PA-18 only) 18-2850, 18-2857 46.86
and up
U12761-002 COVER – Inspection, round, duster indicator installation 1 (PA-18 only) 18-3640 and up 46.86
-3 U60571-000 COVER – Stabilizer yoke inspection, LH 1 26.73
U60571-001 COVER – Stabilizer yoke inspection, RH 1 26.73
-4 U60742-000 PANEL – Tail inspection, LH 1 38.43
U60742-001 PANEL – Tail inspection, RH 1 38.43
-5 U82461-000 COVER – Inspection, rectangular 1 (PA-18 only) 18.02

22
