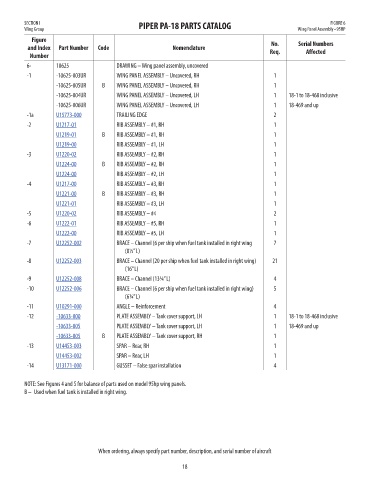

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 6
Wing Group Wing Panel Assembly • 95HP
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Price
Affected
Number
6- 10625 DRAWING – Wing panel assembly, uncovered NM!
-1 -10625-003UR WING PANEL ASSEMBLY – Uncovered, RH 1 NM!
-10625-005UR B WING PANEL ASSEMBLY – Uncovered, RH 1 NM!
-10625-004UR WING PANEL ASSEMBLY – Uncovered, LH 1 18-1 to 18-468 inclusive NM!
-10625-006UR WING PANEL ASSEMBLY – Uncovered, LH 1 18-469 and up NM!
-1a U15773-000 TRAILING EDGE 2 88.88
-2 U1217-01 RIB ASSEMBLY – #1, RH 1 126.54
U1219-01 B RIB ASSEMBLY – #1, RH 1 214.15
U1219-00 RIB ASSEMBLY – #1, LH 1 214.15
-3 U1220-02 RIB ASSEMBLY – #2, RH 1 190.33
U1224-00 B RIB ASSEMBLY – #2, RH 1 157.44
U1224-00 RIB ASSEMBLY – #2, LH 1 157.44
-4 U1217-00 RIB ASSEMBLY – #3, RH 1 157.11
U1221-00 B RIB ASSEMBLY – #3, RH 1 153.36
U1221-01 RIB ASSEMBLY – #3, LH 1 169.15
-5 U1220-02 RIB ASSEMBLY – #4 2 190.33
-6 U1222-01 RIB ASSEMBLY – #5, RH 1 165.08
U1222-00 RIB ASSEMBLY – #5, LH 1 168.77
-7 U12252-002 BRACE – Channel (6 per ship when fuel tank installed in right wing 7 13
(8½” L)
-8 U12252-003 BRACE – Channel (20 per ship when fuel tank installed in right wing) 21 16.86
(16” L)
-9 U12252-008 BRACE – Channel (13¾” L) 4 15.29
-10 U12252-006 BRACE – Channel (6 per ship when fuel tank installed in right wing) 5 14.1
(6¼” L)
-11 U10291-000 ANGLE – Reinforcement 4 23.85
-12 -10633-000 PLATE ASSEMBLY – Tank cover support, LH 1 18-1 to 18-468 inclusive 77.81
-10633-005 PLATE ASSEMBLY – Tank cover support, LH 1 18-469 and up 84.2
-10633-005 B PLATE ASSEMBLY – Tank cover support, RH 1 84.2
-13 U14453-003 SPAR – Rear, RH 1 379.53
U14453-002 SPAR – Rear, LH 1 379.53
-14 U13171-000 GUSSET – False spar installation 4 31.16

NOTE: See Figures 4 and 5 for balance of parts used on model 95hp wing panels.
B – Used when fuel tank is installed in right wing.

When ordering, always specify part number, description, and serial number of aircraft

18
