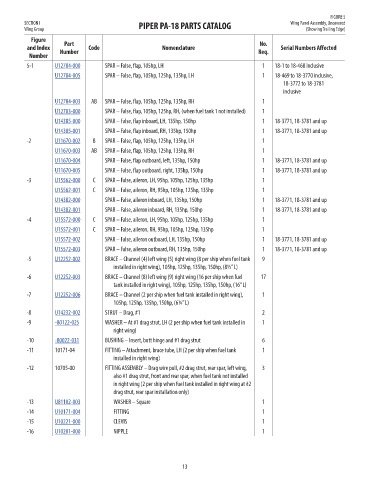

Page 23 - Piper PA-18 Super Cub Interactive Parts Catalog

FIGURE 5
SECTION I PIPER PA-18 PARTS CATALOG Wing Panel Assembly, Uncovered
Wing Group (Showing Trailing Edge)
Figure
No.
Part
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
5-1 U12784-000 SPAR – False, flap, 105hp, LH 1 18-1 to 18-468 inclusive 187.6
U12784-005 SPAR – False, flap, 105hp, 125hp, 135hp, LH 1 18-469 to 18-3770 inclusive, 351.47
18-3772 to 18-3781
inclusive
U12784-003 AB SPAR – False, flap, 105hp, 125hp, 135hp, RH 1 351.47
U12783-000 SPAR – False, flap, 105hp, 125hp, RH, (when fuel tank 1 not installed) 1 128.4
U14385-000 SPAR – False, flap inboard, LH, 135hp, 150hp 1 18-3771, 18-3781 and up 218.04
U14385-001 SPAR – False, flap inboard, RH, 135hp, 150hp 1 18-3771, 18-3781 and up 232.83
-2 U11670-002 B SPAR – False, flap, 105hp, 125hp, 135hp, LH 1 60.29
U11670-003 AB SPAR – False, flap, 105hp, 125hp, 135hp, RH 1 68.17
U11670-004 SPAR – False, flap outboard, left, 135hp, 150hp 1 18-3771, 18-3781 and up 46.19
U11670-005 SPAR – False, flap outboard, right, 135hp, 150hp 1 18-3771, 18-3781 and up 46.19
-3 U15562-000 C SPAR – False, aileron, LH, 95hp, 105hp, 125hp, 135hp 1 62.7
U15562-001 C SPAR – False, aileron, RH, 95hp, 105hp, 125hp, 135hp 1 68.91
U14382-000 SPAR – False, aileron inboard, LH, 135hp, 150hp 1 18-3771, 18-3781 and up 74.22
U14382-001 SPAR – False, aileron inboard, RH, 135hp, 150hp 1 18-3771, 18-3781 and up 70.86
-4 U15572-000 C SPAR – False, aileron, LH, 95hp, 105hp, 125hp, 135hp 1 65.98
U15572-001 C SPAR – False, aileron, RH, 95hp, 105hp, 125hp, 135hp 1 57.54
U15572-002 SPAR – False, aileron outboard, LH, 135hp, 150hp 1 18-3771, 18-3781 and up 51.56
U15572-003 SPAR – False, aileron outboard, RH, 135hp, 150hp 1 18-3771, 18-3781 and up 51.56

-5 U12252-002 BRACE – Channel (4) left wing (5) right wing (8 per ship when fuel tank 9 13
installed in right wing), 105hp, 125hp, 135hp, 150hp, (8½” L)
-6 U12252-003 BRACE – Channel (8) left wing (9) right wing (16 per ship when fuel 17 16.86
tank installed in right wing), 105hp, 125hp, 135hp, 150hp, (16” L)
-7 U12252-006 BRACE – Channel (2 per ship when fuel tank installed in right wing), 1 14.1
105hp, 125hp, 135hp, 150hp, (6¼” L)
-8 U14232-002 STRUT – Drag, #1 2 157.87
-9 -80122-025 WASHER – At #1 drag strut, LH (2 per ship when fuel tank installed in 1 6.92
right wing)
-10 -80022-031 BUSHING – Insert, butt hinge and #1 drag strut 6 11.84
-11 10171-04 FITTING – Attachment, brace tube, LH (2 per ship when fuel tank 1 NM!
installed in right wing)
-12 10705-00 FITTING ASSEMBLY – Drag wire pull, #2 drag strut, rear spar, left wing, 3 NM!
also #1 drag strut, front and rear spar, when fuel tank not installed
in right wing (2 per ship when fuel tank installed in right wing at #2
drag strut, rear spar installation only)
-13 U81102-003 WASHER – Square 1 4.58
-14 U10171-004 FITTING 1 7.28
-15 U10221-000 CLEVIS 1 17.72
-16 U10201-000 NIPPLE 1 11.74

13
