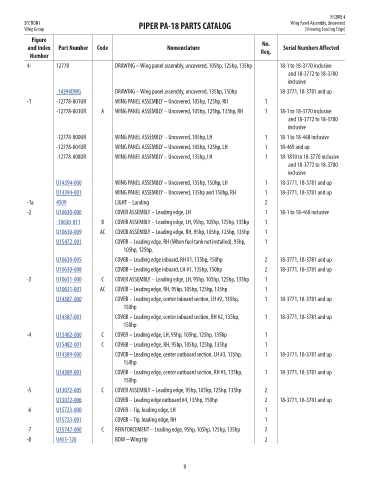

Page 19 - Piper PA-18 Super Cub Interactive Parts Catalog

FIGURE 4
SECTION I PIPER PA-18 PARTS CATALOG Wing Panel Assembly, Uncovered
Wing Group (Showing Leading Edge)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
4- 12778 DRAWING – Wing panel assembly, uncovered, 105hp, 125hp, 135hp 18-1 to 18-3770 inclusive NM!
and 18-3772 to 18-3780
inclusive
-14394DWG DRAWING – Wing panel assembly, uncovered, 135hp, 150hp 18-3771, 18-3781 and up 65.97
-1 -12778-001UR WING PANEL ASSEMBLY – Uncovered, 105hp, 125hp, RH 1 NM!
-12778-003UR A WING PANEL ASSEMBLY – Uncovered, 105hp, 125hp, 135hp, RH 1 18-1 to 18-3770 inclusive NM!
and 18-3772 to 18-3780
inclusive
-12778-000UR WING PANEL ASSEMBLY – Uncovered, 105hp, LH 1 18-1 to 18-468 inclusive NM!

-12778-004UR WING PANEL ASSEMBLY – Uncovered, 105hp, 125hp, LH 1 18-469 and up NM!
-12778-008UR WING PANEL ASSEMBLY – Uncovered, 135hp, LH 1 18-1810 to 18-3770 inclusive NM!
and 18-3772 to 18-3780
inclusive
U14394-000 WING PANEL ASSEMBLY – Uncovered, 135hp, 150hp, LH 1 18-3771, 18-3781 and up 13821.42
U14394-001 WING PANEL ASSEMBLY – Uncovered, 135hp and 150hp, RH 1 18-3771, 18-3781 and up 13369.97
-1a 4509 LIGHT – Landing 2 21.84
-2 U10630-000 COVER ASSEMBLY – Leading edge, LH 1 18-1 to 18-468 inclusive 208.99
-10630-011 B COVER ASSEMBLY – Leading edge, LH, 95hp, 105hp, 125hp, 135hp 1 220.22
U10630-009 AC COVER ASSEMBLY – Leading edge, RH, 95hp, 105hp, 125hp, 135hp 1 134.14
U15472-001 COVER – Leading edge, RH (When fuel tank not installed), 95hp, 1 204.16
105hp, 125hp,
U10630-005 COVER – Leading edge inboard, RH #1, 135hp, 150hp 2 18-3771, 18-3781 and up 149.05
U10630-008 COVER – Leading edge inboard, LH #1, 135hp, 150hp 2 18-3771, 18-3781 and up 137.46
-3 U10631-000 C COVER ASSEMBLY – Leading edge, LH, 95hp, 105hp, 125hp, 135hp 1 176.67
U10631-001 AC COVER – Leading edge, RH, 95hp, 105hp, 125hp, 135hp 1 173.45
U14387-000 COVER – Leading edge, center inboard section, LH #2, 135hp, 1 18-3771, 18-3781 and up 118.94
150hp
U14387-001 COVER – Leading edge, center inboard section, RH #2, 135hp, 1 18-3771, 18-3781 and up 118.94
150hp
-4 U15482-000 C COVER – Leading edge, LH, 95hp, 105hp, 125hp, 135hp 1 170.64
U15482-001 C COVER – Leading edge, RH, 95hp, 105hp, 125hp, 135hp 1 167.6
U14389-000 COVER – Leading edge, center outboard section, LH #3, 135hp, 1 18-3771, 18-3781 and up 154.79
150hp
U14389-001 COVER – Leading edge, center outboard section, RH #3, 135hp, 1 18-3771, 18-3781 and up 154.79
150hp
-5 U13072-005 C COVER ASSEMBLY – Leading edge, 95hp, 105hp, 125hp, 135hp 2 64.68
U13072-006 COVER – Leading edge outboard #4, 135hp, 150hp 2 18-3771, 18-3781 and up 98.44
-6 U15723-000 COVER – Tip, leading edge, LH 1 252.99
U15723-001 COVER – Tip, leading edge, RH 1 258.71
-7 U15742-000 C REINFORCEMENT – Leading edge, 95hp, 105hp, 125hp, 135hp 2 45.69
-8 U453-126 BOW – Wing tip 2 46.14

9
