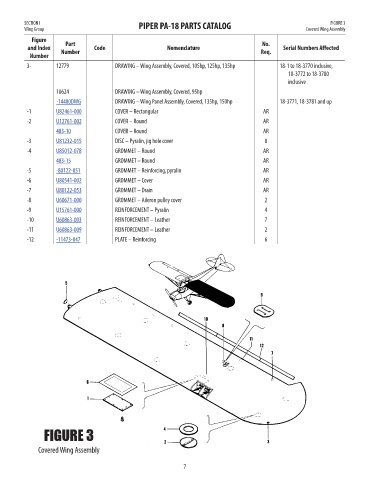

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 3
Wing Group Covered Wing Assembly
Figure
No.
Part
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
3- 12779 DRAWING – Wing Assembly, Covered, 105hp, 125hp, 135hp 18-1 to 18-3770 inclusive, NM!
18-3772 to 18-3780
inclusive
10624 DRAWING – Wing Assembly, Covered, 95hp NM!
-14400DWG DRAWING – Wing Panel Assembly, Covered, 135hp, 150hp 18-3771, 18-3781 and up 65.97
-1 U82461-000 COVER – Rectangular AR 18.02
-2 U12761-002 COVER – Round AR 46.86
483-10 COVER – Round AR 2.25
-3 U81232-015 DISC – Pyralin, jig hole cover 8 2.2
-4 U85012-078 GROMMET – Round AR 8.99
483-15 GROMMET – Round AR 1.01
-5 -80122-051 GROMMET – Reinforcing, pyralin AR 4.37
-6 U80541-002 GROMMET – Cover AR 14.81
-7 U80122-053 GROMMET – Drain AR 4.09
-8 U60671-000 GROMMET – Aileron pulley cover 2 11.62
-9 U15761-000 REINFORCEMENT – Pyralin 4 8.71
-10 U60863-003 REINFORCEMENT – Leather 7 4.14
-11 U60863-009 REINFORCEMENT – Leather 2 11.22
-12 -11473-047 PLATE – Reinforcing 6 13.07

FIGURE 3

Covered Wing Assembly

7
