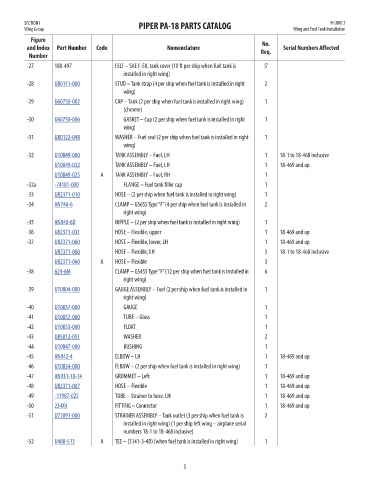

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 2
Wing Group Wing and Fuel Tank Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-27 180-497 FELT – SAE F-50, tank cover (10 ft per ship when fuel tank is 5’ NM!
installed in right wing)
-28 U80111-000 STUD – Tank strap (4 per ship when fuel tank is installed in right 2 21.47
wing)
-29 U60750-002 CAP – Tank (2 per ship when fuel tank is installed in right wing) 1 129.32
(chrome)
-30 U60750-006 GASKET – Cap (2 per ship when fuel tank is installed in right 1 1.97
wing)

-31 U80122-048 WASHER – Fuel seal (2 per ship when fuel tank is installed in right 1 8.21
wing)
-32 U10849-000 TANK ASSEMBLY – Fuel, LH 1 18-1 to 18-468 inclusive 2105.1
U10849-032 TANK ASSEMBLY – Fuel, LH 1 18-469 and up 2062.45
U10849-025 A TANK ASSEMBLY – Fuel, RH 1 2105.1
-32a -74181-000 FLANGE – Fuel tank filler cap 1 49.57
-33 U82371-010 HOSE – (2 per ship when fuel tank is installed in right wing) 1 23.8
-34 AN746-6 CLAMP – GS6SS Type “F” (4 per ship when fuel tank is installed in 2 1.79
right wing)
-35 AN840-6D NIPPLE – (2 per ship when fuel tank is installed in right wing) 1 11.96
-36 U82371-031 HOSE – Flexible, upper 1 18-469 and up 30.44
-37 U82371-060 HOSE – Flexible, lower, LH 1 18-469 and up 68.17
U82371-060 HOSE – Flexible, LH 3 18-1 to 18-468 inclusive 68.17
U82371-060 A HOSE – Flexible 3 68.17
-38 624-6M CLAMP – GS4SS Type “F” (12 per ship when fuel tank is installed in 6 1.51
right wing)
-39 U10804-000 GAUGE ASSEMBLY – Fuel (2 per ship when fuel tank is installed in 1 228.11
right wing)
-40 U10837-000 GAUGE 1 124.49
-41 U10852-000 TUBE – Glass 1 23.21
-42 U10853-000 FLOAT 1 7.28

-43 U85012-051 WASHER 2 5.54
-44 U10847-000 BUSHING 1 23.25
-45 AN842-4 ELBOW – LH 1 18-469 and up 52
-46 U10834-000 ELBOW – (2 per ship when fuel tank is installed in right wing) 1 112.11
-47 AN931-10-14 GROMMET – Left 1 18-469 and up 2
-48 U82371-007 HOSE – Flexible 1 18-469 and up 20.2
-49 -11987-025 TUBE – Strainer to hose, LH 1 18-469 and up 27.34
-50 234X4 FITTING – Connector 1 18-469 and up 7.9
-51 U72091-000 STRAINER ASSEMBLY – Tank outlet (3 per ship when fuel tank is 2 69.26
installed in right wing) (1 per ship left wing – airplane serial
numbers 18-1 to 18-468 inclusive)
-52 U488-513 A TEE – (3141-3-4D) (when fuel tank is installed in right wing) 1 89.27

5
