Page 14 - Piper PA-18 Super Cub Interactive Parts Catalog

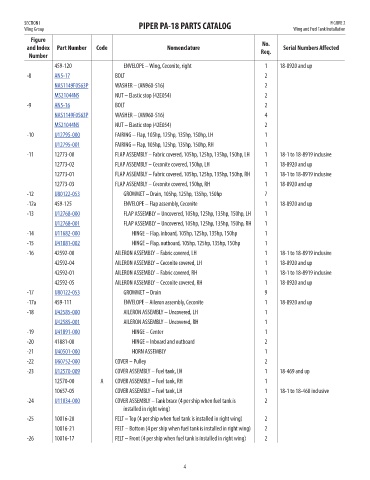

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 2
Wing Group Wing and Fuel Tank Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
459-120 ENVELOPE – Wing, Ceconite, right 1 18-8920 and up NM!
-8 AN5-17 BOLT 2 1.64
NAS1149F0563P WASHER – (AN960-516) 2 0.08
MS21044N5 NUT – Elastic stop (42E054) 2 0.4
-9 AN5-16 BOLT 2 1.03
NAS1149F0563P WASHER – (AN960-516) 4 0.08
MS21044N5 NUT – Elastic stop (42E054) 2 0.4
-10 U12795-000 FAIRING – Flap, 105hp, 125hp, 135hp, 150hp, LH 1 78.61
U12795-001 FAIRING – Flap, 105hp, 125hp, 135hp, 150hp, RH 1 78.61
-11 12773-00 FLAP ASSEMBLY – Fabric covered, 105hp, 125hp, 135hp, 150hp, LH 1 18-1 to 18-8919 inclusive NM!
12773-02 FLAP ASSEMBLY – Ceconite covered, 150hp, LH 1 18-8920 and up NM!
12773-01 FLAP ASSEMBLY – Fabric covered, 105hp, 125hp, 135hp, 150hp, RH 1 18-1 to 18-8919 inclusive NM!
12773-03 FLAP ASSEMBLY – Ceconite covered, 150hp, RH 1 18-8920 and up NM!
-12 U80122-053 GROMMET – Drain, 105hp, 125hp, 135hp, 150hp 7 4.09
-12a 459-125 ENVELOPE – Flap assembly, Ceconite 1 18-8920 and up NM!
-13 U12768-000 FLAP ASSEMBLY – Uncovered, 105hp, 125hp, 135hp, 150hp, LH 1 1693.94
U12768-001 FLAP ASSEMBLY – Uncovered, 105hp, 125hp, 135hp, 150hp, RH 1 1693.94
-14 U11682-000 HINGE – Flap, inboard, 105hp, 125hp, 135hp, 150hp 1 244.8
-15 U41881-002 HINGE – Flap, outboard, 105hp, 125hp, 135hp, 150hp 1 111.53
-16 42592-00 AILERON ASSEMBLY – Fabric covered, LH 1 18-1 to 18-8919 inclusive NM!
42592-04 AILERON ASSEMBLY – Ceconite covered, LH 1 18-8920 and up NM!
42592-01 AILERON ASSEMBLY – Fabric covered, RH 1 18-1 to 18-8919 inclusive NM!
42592-05 AILERON ASSEMBLY – Ceconite covered, RH 1 18-8920 and up NM!

-17 U80122-053 GROMMET – Drain 9 4.09
-17a 459-111 ENVELOPE – Aileron assembly, Ceconite 1 18-8920 and up NM!
-18 U42585-000 AILERON ASSEMBLY – Uncovered, LH 1 1548.46
U42585-001 AILERON ASSEMBLY – Uncovered, RH 1 1548.46
-19 U41891-000 HINGE – Center 1 81.49
-20 41881-00 HINGE – Inboard and outboard 2 NM!
-21 U40501-000 HORN ASSEMBLY 1 188.8
-22 U60752-000 COVER – Pulley 2 65.77
-23 U12570-009 COVER ASSEMBLY – Fuel tank, LH 1 18-469 and up 331.9
12570-00 A COVER ASSEMBLY – Fuel tank, RH 1 NM!
10657-05 COVER ASSEMBLY – Fuel tank, LH 1 18-1 to 18-468 inclusive NM!
-24 U11034-000 COVER ASSEMBLY – Tank brace (4 per ship when fuel tank is 2 21.87
installed in right wing)
-25 10016-20 FELT – Top (4 per ship when fuel tank is installed in right wing) 2 NM!
10016-21 FELT – Bottom (4 per ship when fuel tank is installed in right wing) 2 NM!
-26 10016-17 FELT – Front (4 per ship when fuel tank is installed in right wing) 2 NM!

4
