P. 22

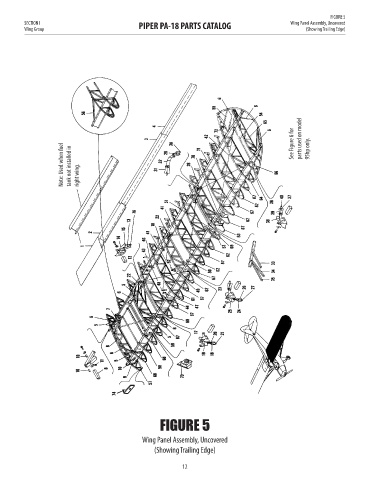

FIGURE 5
SECTION I PIPER PA-18 PARTS CATALOG Wing Panel Assembly, Uncovered
Wing Group (Showing Trailing Edge)
Note: Used when fuel tank not installed in right wing. See Figure 6 for parts used on model 95hp only.
FIGURE 5
Wing Panel Assembly, Uncovered
(Showing Trailing Edge)
12
