FIGURE 5

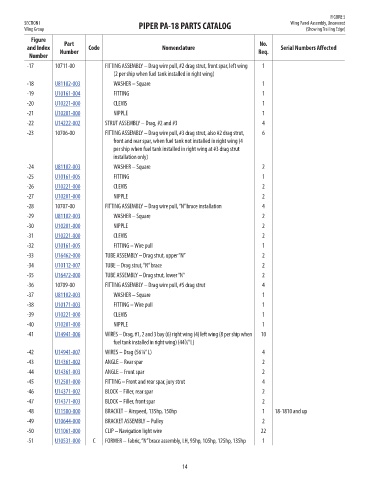

SECTION I PIPER PA-18 PARTS CATALOG Wing Panel Assembly, Uncovered
Wing Group (Showing Trailing Edge)
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-17 10711-00 FITTING ASSEMBLY – Drag wire pull, #2 drag strut, front spar, left wing 1 NM!
(2 per ship when fuel tank installed in right wing)
-18 U81102-003 WASHER – Square 1 4.58
-19 U10161-004 FITTING 1 15.64
-20 U10221-000 CLEVIS 1 17.72
-21 U10201-000 NIPPLE 1 11.74
-22 U14222-002 STRUT ASSEMBLY – Drag, #2 and #3 4 155.77
-23 10706-00 FITTING ASSEMBLY – Drag wire pull, #3 drag strut, also #2 drag strut, 6 NM!
front and rear spar, when fuel tank not installed in right wing (4
per ship when fuel tank installed in right wing at #3 drag strut
installation only)
-24 U81102-003 WASHER – Square 2 4.58
-25 U10161-005 FITTING 1 15.64
-26 U10221-000 CLEVIS 2 17.72
-27 U10201-000 NIPPLE 2 11.74
-28 10707-00 FITTING ASSEMBLY – Drag wire pull, “N” brace installation 4 NM!
-29 U81102-003 WASHER – Square 2 4.58
-30 U10201-000 NIPPLE 2 11.74
-31 U10221-000 CLEVIS 2 17.72
-32 U10161-005 FITTING – Wire pull 1 15.64
-33 U16462-000 TUBE ASSEMBLY – Drag strut, upper “N” 2 131.49
-34 U10112-007 TUBE – Drag strut, “N” brace 2 74.71
-35 U16472-000 TUBE ASSEMBLY – Drag strut, lower “N” 2 131.95
-36 10709-00 FITTING ASSEMBLY – Drag wire pull, #5 drag strut 4 NM!
-37 U81102-003 WASHER – Square 1 4.58
-38 U10171-003 FITTING – Wire pull 1 7.28
-39 U10221-000 CLEVIS 1 17.72
-40 U10201-000 NIPPLE 1 11.74
-41 U14941-006 WIRES – Drag, #1, 2 and 3 bay (6) right wing (4) left wing (8 per ship when 10 30.27
fuel tank installed in right wing) (44 ⁄8” L)
7
-42 U14941-007 WIRES – Drag (56¼” L) 4 33.6
-43 U14361-002 ANGLE – Rear spar 2 15.9
-44 U14361-003 ANGLE – Front spar 2 30.82
-45 U12581-000 FITTING – Front and rear spar, jury strut 4 21.22
-46 U14371-002 BLOCK – Filler, rear spar 2 20.19
-47 U14371-003 BLOCK – Filler, front spar 2 25.86
-48 U11580-000 BRACKET – Airspeed, 135hp, 150hp 1 18-1810 and up 18.39
-49 U10644-000 BRACKET ASSEMBLY – Pulley 2 94.38
-50 U11061-000 CLIP – Navigation light wire 22 7.74
-51 U10531-000 C FORMER – Fabric, “N” brace assembly, LH, 95hp, 105hp, 125hp, 135hp 1 66.76

14
