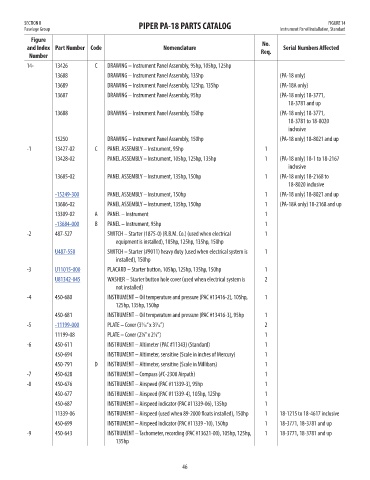

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 14
Fuselage Group Instrument Panel Installation, Standard
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
14- 13426 C DRAWING – Instrument Panel Assembly, 95hp, 105hp, 125hp NM!
13688 DRAWING – Instrument Panel Assembly, 135hp (PA-18 only) NM!
13689 DRAWING – Instrument Panel Assembly, 125hp, 135hp (PA-18A only) NM!
13687 DRAWING – Instrument Panel Assembly, 95hp (PA-18 only) 18-3771, NM!
18-3781 and up
13688 DRAWING – Instrument Panel Assembly, 150hp (PA-18 only) 18-3771, NM!
18-3781 to 18-8020
inclusive
15250 DRAWING – Instrument Panel Assembly, 150hp (PA-18 only) 18-8021 and up NM!
-1 13427-02 C PANEL ASSEMBLY – Instrument, 95hp 1 NM!
13428-02 PANEL ASSEMBLY – Instrument, 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-2167 NM!
inclusive
13685-02 PANEL ASSEMBLY – Instrument, 135hp, 150hp 1 (PA-18 only) 18-2168 to NM!
18-8020 inclusive
-15249-300 PANEL ASSEMBLY – Instrument, 150hp 1 (PA-18 only) 18-8021 and up 474.89
13686-02 PANEL ASSEMBLY – Instrument, 135hp, 150hp 1 (PA-18A only) 18-2168 and up NM!
13309-02 A PANEL – Instrument 1 NM!
-13684-000 B PANEL – Instrument, 95hp 1 90.1
-2 487-527 SWITCH – Starter (1875-0) (R.B.M. Co.) (used when electrical 1 NM!
equipment is installed), 105hp, 125hp, 135hp, 150hp
U487-550 SWITCH – Starter (#9011) heavy duty (used when electrical system is 1 65.84
installed), 150hp
-3 U11015-000 PLACARD – Starter button, 105hp, 125hp, 135hp, 150hp 1 17.34
U81342-045 WASHER – Starter button hole cover (used when electrical system is 2 4.62
not installed)
-4 450-680 INSTRUMENT – Oil temperature and pressure (PAC #13416-2), 105hp, 1 NM!
125hp, 135hp, 150hp
450-681 INSTRUMENT – Oil temperature and pressure (PAC #13416-3), 95hp 1 NM!
-5 -11199-000 PLATE – Cover (3 ⁄16” x 3 ⁄16”) 2 46.98
3
3
11199-08 PLATE – Cover (2 ⁄8” x 2 ⁄8”) 1 NM!
5
5
-6 450-611 INSTRUMENT – Altimeter (PAC #11343) (Standard) 1 NM!
450-694 INSTRUMENT – Altimeter, sensitive (Scale in inches of Mercury) 1 NM!
450-791 D INSTRUMENT – Altimeter, sensitive (Scale in Millibars) 1 NM!
-7 450-628 INSTRUMENT – Compass (#C-2300 Airpath) 1 NM!
-8 450-676 INSTRUMENT – Airspeed (PAC #11339-3), 95hp 1 NM!
450-677 INSTRUMENT – Airspeed (PAC #11339-4), 105hp, 125hp 1 NM!
450-687 INSTRUMENT – Airspeed indicator (PAC #11339-06), 135hp 1 NM!
11339-06 INSTRUMENT – Airspeed (used when 89-2000 floats installed), 150hp 1 18-1215 to 18-4617 inclusive NM!
450-699 INSTRUMENT – Airspeed indicator (PAC #11339 -10), 150hp 1 18-3771, 18-3781 and up NM!
-9 450-643 INSTRUMENT – Tachometer, recording (PAC #13621-00), 105hp, 125hp, 1 18-3771, 18-3781 and up NM!
135hp

46
