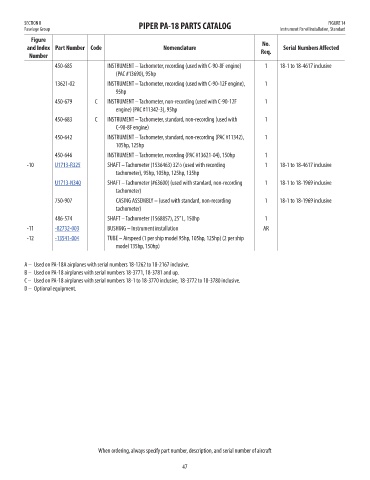

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 14
Fuselage Group Instrument Panel Installation, Standard
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
450-685 INSTRUMENT – Tachometer, recording (used with C-90-8F engine) 1 18-1 to 18-4617 inclusive NM!
(PAC #13690), 95hp
13621-02 INSTRUMENT – Tachometer, recording (used with C-90-12F engine), 1 NM!
95hp
450-679 C INSTRUMENT – Tachometer, non-recording (used with C-90-12F 1 NM!
engine) (PAC #11342-3), 95hp
450-683 C INSTRUMENT – Tachometer, standard, non-recording (used with 1 NM!
C-90-8F engine)

450-642 INSTRUMENT – Tachometer, standard, non-recording (PAC #11342), 1 NM!
105hp, 125hp
450-646 INSTRUMENT – Tachometer, recording (PAC #13621-04), 150hp 1 NM!
-10 U1713-R325 SHAFT – Tachometer (1536463) 32½ (used with recording 1 18-1 to 18-4617 inclusive 165.41
tachometer), 95hp, 105hp, 125hp, 135hp
U1713-N340 SHAFT – Tachometer (#63600) (used with standard, non-recording 1 18-1 to 18-1969 inclusive 166.15
tachometer)
750-907 CASING ASSEMBLY – (used with standard, non-recording 1 18-1 to 18-1969 inclusive NM!
tachometer)
486-574 SHAFT – Tachometer (1568857), 25” L, 150hp 1 NM!
-11 -82732-003 BUSHING – Instrument installation AR 2.5
-12 -13541-004 TUBE – Airspeed (1 per ship model 95hp, 105hp, 125hp) (2 per ship 13.54
model 135hp, 150hp)

A – Used on PA-18A airplanes with serial numbers 18-1262 to 18-2167 inclusive.
B – Used on PA-18 airplanes with serial numbers 18-3771, 18-3781 and up.
C – Used on PA-18 airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
D – Optional equipment.

When ordering, always specify part number, description, and serial number of aircraft

47
