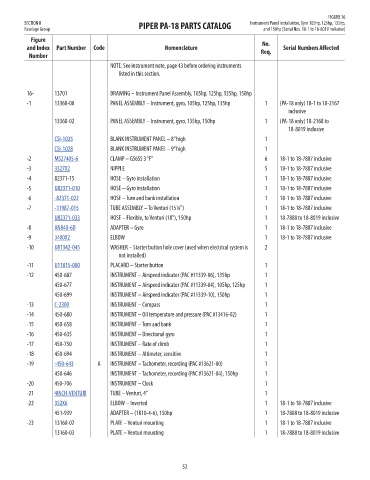

FIGURE 16
SECTION II PIPER PA-18 PARTS CATALOG Instrument Panel Installation, Gyro 105hp, 125hp, 135hp,
Fuselage Group and 150hp (Serial Nos. 18-1 to 18-8019 inclusive)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
NOTE: See instrument note, page 43 before ordering instruments x
listed in this section.
x
16- 13701 DRAWING – Instrument Panel Assembly, 105hp, 125hp, 135hp, 150hp NM!
-1 13368-00 PANEL ASSEMBLY – Instrument, gyro, 105hp, 125hp, 135hp 1 (PA-18 only) 18-1 to 18-2167 NM!
inclusive
13368-02 PANEL ASSEMBLY – Instrument, gyro, 135hp, 150hp 1 (PA-18 only) 18-2168 to NM!
18-8019 inclusive
CSI-1025 BLANK INSTRUMENT PANEL – 8” high 1 105.47
CSI-1028 BLANK INSTRUMENT PANEL – 9” high 1 105.47
-2 MS27405-6 CLAMP – GS6SS 3 “F” 6 18-1 to 18-7887 inclusive 5.09
-3 3327X2 NIPPLE 5 18-1 to 18-7887 inclusive 2.64
-4 82371-15 HOSE – Gyro installation 1 18-1 to 18-7887 inclusive NM!
-5 U82371-010 HOSE – Gyro installation 1 18-1 to 18-7887 inclusive 23.8
-6 -82371-022 HOSE – Turn and bank installation 1 18-1 to 18-7887 inclusive 28.73
-7 -11987-015 TUBE ASSEMBLY – To Venturi (15¼”) 1 18-1 to 18-7887 inclusive 43.86
U82371-033 HOSE – Flexible, to Venturi (18”), 150hp 1 18-7888 to 18-8019 inclusive 52.26
-8 AN840-6D ADAPTER – Gyro 1 18-1 to 18-7887 inclusive 11.96
-9 3400X2 ELBOW 1 18-1 to 18-7887 inclusive 2.93
-10 U81342-045 WASHER – Starter button hole cover (used when electrical system is 2 4.62
not installed)
-11 U11015-000 PLACARD – Starter button 1 17.34
-12 450-687 INSTRUMENT – Airspeed indicator (PAC #11339-06), 135hp 1 NM!
450-677 INSTRUMENT – Airspeed indicator (PAC #11339-04), 105hp, 125hp 1 NM!
450-699 INSTRUMENT – Airspeed indicator (PAC #11339-10), 150hp 1 NM!
-13 C-2300 INSTRUMENT – Compass 1 238.25
-14 450-680 INSTRUMENT – Oil temperature and pressure (PAC #13416-02) 1 NM!
-15 450-658 INSTRUMENT – Turn and bank 1 NM!
-16 450-635 INSTRUMENT – Directional gyro 1 NM!
-17 450-750 INSTRUMENT – Rate of climb 1 NM!
-18 450-694 INSTRUMENT – Altimeter, sensitive 1 NM!
-19 -450-643 A INSTRUMENT – Tachometer, recording (PAC #13621-00) 1 327.25
450-646 INSTRUMENT – Tachometer, recording (PAC #13621-04), 150hp 1 NM!
-20 450-706 INSTRUMENT – Clock 1 NM!
-21 4INCH-VENTURI TUBE – Venturi, 4” 1 78.82
-22 352X6 ELBOW – Inverted 1 18-1 to 18-7887 inclusive 7.83
451-939 ADAPTER – (1K10-4-6), 150hp 1 18-7888 to 18-8019 inclusive NM!
-23 13160-02 PLATE – Venturi mounting 1 18-1 to 18-7887 inclusive NM!
13160-03 PLATE – Venturi mounting 1 18-7888 to 18-8019 inclusive NM!

52
