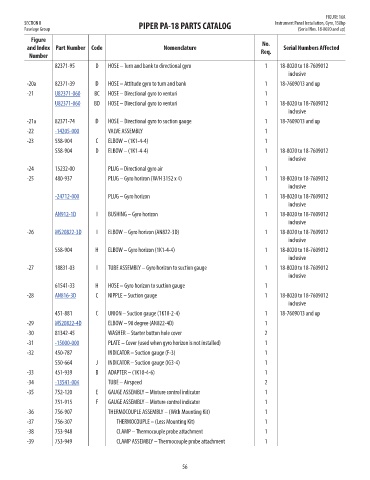

FIGURE 16A
SECTION II PIPER PA-18 PARTS CATALOG Instrument Panel Installation, Gyro, 150hp
Fuselage Group (Serial Nos. 18-8020 and up)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
82371-95 D HOSE – Turn and bank to directional gyro 1 18-8020 to 18-7609012 NM!
inclusive
-20a 82371-39 D HOSE – Attitude gyro to turn and bank 1 18-7609013 and up NM!
-21 U82371-060 BC HOSE – Directional gyro to venturi 1 68.17
U82371-060 BD HOSE – Directional gyro to venturi 1 18-8020 to 18-7609012 68.17
inclusive
-21a 82371-74 D HOSE – Directional gyro to suction gauge 1 18-7609013 and up NM!
-22 -14205-000 VALVE ASSEMBLY 1 101.87
-23 558-904 C ELBOW – (1K1-4-4) 1 NM!
558-904 D ELBOW – (1K1-4-4) 1 18-8020 to 18-7609012 NM!
inclusive
-24 15232-00 PLUG – Directional gyro air 1 NM!
-25 480-937 PLUG – Gyro horizon (W/H 3152 x 4) 1 18-8020 to 18-7609012 NM!
inclusive
-24712-000 PLUG – Gyro horizon 1 18-8020 to 18-7609012 0.79
inclusive
AN912-1D I BUSHING – Gyro horizon 1 18-8020 to 18-7609012 8.04
inclusive
-26 MS20822-3D I ELBOW – Gyro horizon (AN822-3D) 1 18-8020 to 18-7609012 18.78
inclusive
558-904 H ELBOW – Gyro horizon (1K1-4-4) 1 18-8020 to 18-7609012 NM!
inclusive
-27 18831-03 I TUBE ASSEMBLY – Gyro horizon to suction gauge 1 18-8020 to 18-7609012 NM!
inclusive
61541-33 H HOSE – Gyro horizon to suction gauge 1 NM!
-28 AN816-3D C NIPPLE – Suction gauge 1 18-8020 to 18-7609012 2.72
inclusive
451-881 C UNION – Suction gauge (1K10-2-4) 1 18-7609013 and up NM!
-29 MS20822-4D ELBOW – 90 degree (AN822-4D) 1 20
-30 81342-45 WASHER – Starter button hole cover 2 NM!
-31 -15000-000 PLATE – Cover (used when gyro horizon is not installed) 1 23.82
-32 450-787 INDICATOR – Suction gauge (F-3) 1 NM!
550-664 J INDICATOR – Suction gauge (IG3-4) 1 NM!
-33 451-939 B ADAPTER – (1K10-4-6) 1 NM!
-34 -13541-004 TUBE – Airspeed 2 13.54
-35 752-120 E GAUGE ASSEMBLY – Mixture control indicator 1 NM!
751-915 F GAUGE ASSEMBLY – Mixture control indicator 1 NM!
-36 756-907 THERMOCOUPLE ASSEMBLY – (With Mounting Kit) 1 NM!
-37 756-307 THERMOCOUPLE – (Less Mounting Kit) 1 NM!
-38 753-948 CLAMP – Thermocouple probe attachment 1 NM!
-39 753-949 CLAMP ASSEMBLY – Thermocouple probe attachment 1 NM!

56
