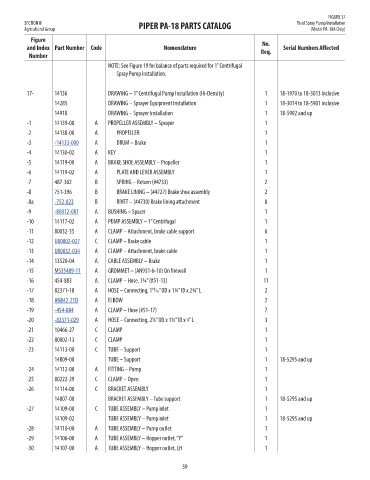

FIGURE 17
SECTION III PIPER PA-18 PARTS CATALOG Fluid Spray Pump Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
NOTE: See Figure 19 for balance of parts required for 1” Centrifugal x
Spray Pump Installation.
x
17- 14136 DRAWING – 1” Centrifugal Pump Installation (Hi-Density) 1 18-1970 to 18-3013 inclusive NM!
14285 DRAWING – Sprayer Equipment Installation 1 18-3014 to 18-5901 inclusive NM!
14918 DRAWING – Sprayer Installation 1 18-5902 and up NM!
-1 14139-00 A PROPELLER ASSEMBLY – Sprayer 1 NM!
-2 14138-00 A PROPELLER 1 NM!
-3 -14133-000 A DRUM – Brake 1 270.47

-4 14130-02 A KEY 1 NM!
-5 14119-00 A BRAKE SHOE ASSEMBLY – Propeller 1 NM!
-6 14119-02 A PLATE AND LEVER ASSEMBLY 1 NM!
-7 487-302 B SPRING – Return (#4733) 2 NM!
-8 751-396 B BRAKE LINING – (#4727) Brake shoe assembly 2 NM!
-8a -752-823 B RIVET – (#4730) Brake lining attachment 8 0.1
-9 -80012-081 A BUSHING – Spacer 1 15
-10 14117-02 A PUMP ASSEMBLY – 1” Centrifugal 1 NM!
-11 80032-55 A CLAMP – Attachment, brake cable support 6 NM!
-12 U80002-027 C CLAMP – Brake cable 1 23.38
-13 U80032-034 A CLAMP – Attachment, brake cable 1 25.91
-14 13520-04 A CABLE ASSEMBLY – Brake 1 NM!
-15 MS35489-11 A GROMMET – (AN931-6-10) On firewall 1 0.6
-16 454-883 A CLAMP – Hose, 1¼” (#51-13) 11 NM!
-17 82371-18 A HOSE – Connecting, 1 ⁄16” OD x 1¼” ID x 2¾” L 2 NM!
11
-18 AN842-21D A ELBOW 2 54.7
-19 -454-884 A CLAMP – Hose (#51-17) 7 0.87
-20 -82371-029 A HOSE – Connecting, 2 ⁄8” OD x 1¾” ID x 4” L 3 11.23
1
-21 10466-27 C CLAMP 1 NM!
-22 80002-13 C CLAMP 1 NM!
-23 14113-00 C TUBE – Support 1 NM!
14809-00 TUBE – Support 1 18-5295 and up NM!
-24 14112-00 A FITTING – Pump 1 NM!
-25 80222-29 C CLAMP – Open 1 NM!
-26 14114-00 C BRACKET ASSEMBLY 1 NM!
14807-00 BRACKET ASSEMBLY – Tube support 1 18-5295 and up NM!
-27 14109-00 C TUBE ASSEMBLY – Pump inlet 1 NM!

14109-02 TUBE ASSEMBLY – Pump inlet 1 18-5295 and up NM!
-28 14110-00 A TUBE ASSEMBLY – Pump outlet 1 NM!
-29 14106-00 A TUBE ASSEMBLY – Hopper outlet, “Y” 1 NM!
-30 14107-00 A TUBE ASSEMBLY – Hopper outlet, LH 1 NM!

59
