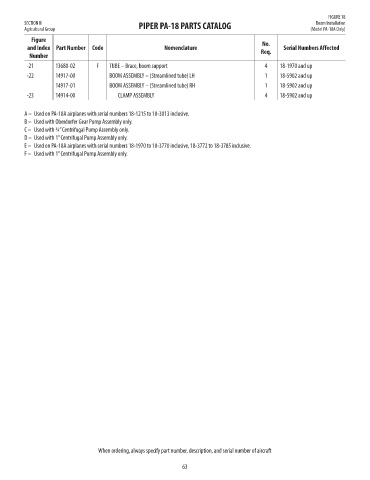

FIGURE 18
SECTION III PIPER PA-18 PARTS CATALOG Boom Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-21 13680-02 F TUBE – Brace, boom support 4 18-1970 and up NM!
-22 14917-00 BOOM ASSEMBLY – (Streamlined tube) LH 1 18-5902 and up NM!
14917-01 BOOM ASSEMBLY – (Streamlined tube) RH 1 18-5902 and up NM!
-23 14914-00 CLAMP ASSEMBLY 4 18-5902 and up NM!
A – Used on PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
B – Used with Oberdorfer Gear Pump Assembly only.
C – Used with ¾” Centrifugal Pump Assembly only.
D – Used with 1” Centrifugal Pump Assembly only.
E – Used on PA-18A airplanes with serial numbers 18-1970 to 18-3770 inclusive, 18-3772 to 18-3785 inclusive.
F – Used with 1” Centrifugal Pump Assembly only.
When ordering, always specify part number, description, and serial number of aircraft
