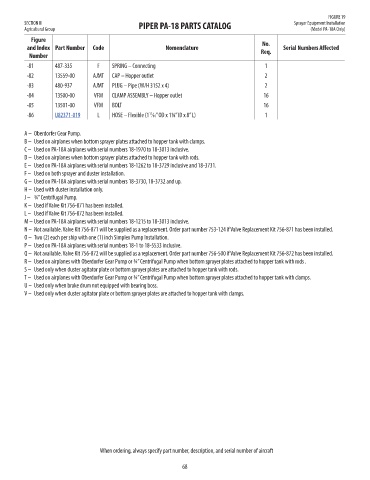

FIGURE 19
SECTION III PIPER PA-18 PARTS CATALOG Sprayer Equipment Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-81 487-335 F SPRING – Connecting 1 NM!
-82 13559-00 AJMT CAP – Hopper outlet 2 NM!
-83 480-937 AJMT PLUG – Pipe (W/H 3152 x 4) 2 NM!
-84 13500-00 VFM CLAMP ASSEMBLY – Hopper outlet 16 NM!
-85 13501-00 VFM BOLT 16 NM!
-86 U82371-019 L HOSE – Flexible (1 ⁄16” OD x 1¼” ID x 8” L) 1 34.52
11

A – Oberdorfer Gear Pump.
B – Used on airplanes when bottom sprayer plates attached to hopper tank with clamps.
C – Used on PA-18A airplanes with serial numbers 18-1970 to 18-3013 inclusive.
D – Used on airplanes when bottom sprayer plates attached to hopper tank with rods.
E – Used on PA-18A airplanes with serial numbers 18-1262 to 18-3729 inclusive and 18-3731.
F – Used on both sprayer and duster installation.
G – Used on PA-18A airplanes with serial numbers 18-3730, 18-3732 and up.
H – Used with duster installation only.
J – ¾” Centrifugal Pump.
K – Used if Valve Kit 756-871 has been installed.
L – Used if Valve Kit 756-872 has been installed.
M – Used on PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
N – Not available. Valve Kit 756-871 will be supplied as a replacement. Order part number 753-124 if Valve Replacement Kit 756-871 has been installed.
O – Two (2) each per ship with one (1) inch Simplex Pump Installation.
P – Used on PA-18A airplanes with serial numbers 18-1 to 18-5533 inclusive.
Q – Not available. Valve Kit 756-872 will be supplied as a replacement. Order part number 756-500 if Valve Replacement Kit 756-872 has been installed.
R – Used on airplanes with Oberdorfer Gear Pump or ¾” Centrifugal Pump when bottom sprayer plates attached to hopper tank with rods .
S – Used only when duster agitator plate or bottom sprayer plates are attached to hopper tank with rods.
T – Used on airplanes with Oberdorfer Gear Pump or ¾” Centrifugal Pump when bottom sprayer plates attached to hopper tank with clamps.
U – Used only when brake drum not equipped with bearing boss.
V – Used only when duster agitator plate or bottom sprayer plates are attached to hopper tank with clamps.

When ordering, always specify part number, description, and serial number of aircraft

68
