Page 83 - Piper PA-18 Super Cub Interactive Parts Catalog
P. 83

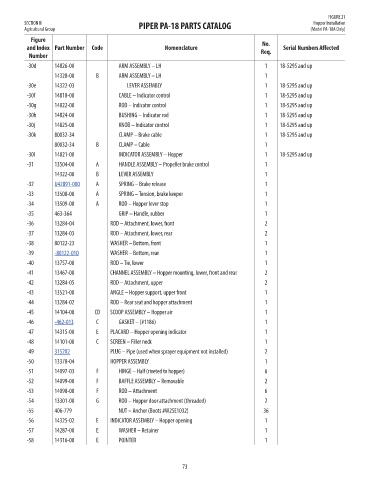

FIGURE 21
SECTION III PIPER PA-18 PARTS CATALOG Hopper Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-30d 14826-00 ARM ASSEMBLY – LH 1 18-5295 and up NM!
14328-00 B ARM ASSEMBLY – LH 1 NM!
-30e 14322-03 LEVER ASSEMBLY 1 18-5295 and up NM!
-30f 14818-00 CABLE – Indicator control 1 18-5295 and up NM!
-30g 14822-00 ROD – Indicator control 1 18-5295 and up NM!
-30h 14824-00 BUSHING – Indicator rod 1 18-5295 and up NM!
-30j 14825-00 KNOB – Indicator control 1 18-5295 and up NM!
-30k 80032-34 CLAMP – Brake cable 1 18-5295 and up NM!
80032-34 B CLAMP – Cable 1 NM!
-30l 14821-00 INDICATOR ASSEMBLY – Hopper 1 18-5295 and up NM!
-31 13504-00 A HANDLE ASSEMBLY – Propeller brake control 1 NM!
14322-00 B LEVER ASSEMBLY 1 NM!
-32 U42891-000 A SPRING – Brake release 1 7.53
-33 13508-00 A SPRING – Tension, brake keeper 1 NM!
-34 13509-00 A ROD – Hopper lever stop 1 NM!
-35 463-364 GRIP – Handle, rubber 1 NM!
-36 13284-04 ROD – Attachment, lower, front 2 NM!
-37 13284-03 ROD – Attachment, lower, rear 2 NM!
-38 80122-23 WASHER – Bottom, front 1 NM!
-39 -80122-010 WASHER – Bottom, rear 1 4.81
-40 13757-00 ROD – Tie, lower 1 NM!
-41 13467-00 CHANNEL ASSEMBLY – Hopper mounting, lower, front and rear 2 NM!
-42 13284-05 ROD – Attachment, upper 2 NM!
-43 13521-00 ANGLE – Hopper support, upper front 1 NM!
-44 13284-02 ROD – Rear seat and hopper attachment 1 NM!
-45 14104-00 CD SCOOP ASSEMBLY – Hopper air 1 NM!
-46 -462-013 C GASKET – (#1186) 1 4.96
-47 14315-00 E PLACARD – Hopper opening indicator 1 NM!
-48 14101-00 C SCREEN – Filler neck 1 NM!
-49 3152X2 PLUG – Pipe (used when sprayer equipment not installed) 2 1.42
-50 13378-04 HOPPER ASSEMBLY 1 NM!
-51 14097-03 F HINGE – Half (riveted to hopper) 6 NM!
-52 14099-00 F BAFFLE ASSEMBLY – Removable 2 NM!
-53 14098-00 F ROD – Attachment 6 NM!
-54 13301-00 G ROD – Hopper door attachment (threaded) 2 NM!
-55 406-779 NUT – Anchor (Boots #W2SE1032) 36 NM!
-56 14325-02 E INDICATOR ASSEMBLY – Hopper opening 1 NM!
-57 14287-00 E WASHER – Retainer 1 NM!
-58 14316-00 E POINTER 1 NM!
73
