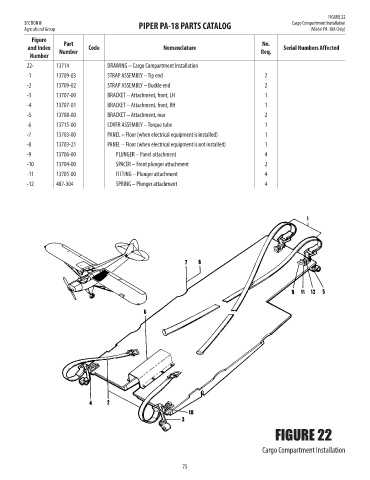

FIGURE 22
SECTION III PIPER PA-18 PARTS CATALOG Cargo Compartment Installation
Agricultural Group (Model PA-18A Only)
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
22- 13714 DRAWING – Cargo Compartment Installation NM!
-1 13709-03 STRAP ASSEMBLY – Tip end 2 NM!
-2 13709-02 STRAP ASSEMBLY – Buckle end 2 NM!
-3 13707-00 BRACKET – Attachment, front, LH 1 NM!
-4 13707-01 BRACKET – Attachment, front, RH 1 NM!
-5 13708-00 BRACKET – Attachment, rear 2 NM!
-6 13715-00 COVER ASSEMBLY – Torque tube 1 NM!
-7 13703-00 PANEL – Floor (when electrical equipment is installed) 1 NM!
-8 13703-21 PANEL – Floor (when electrical equipment is not installed) 1 NM!
-9 13706-00 PLUNGER – Panel attachment 4 NM!
-10 13704-00 SPACER – Front plunger attachment 2 NM!
-11 13705-00 FITTING – Plunger attachment 4 NM!
-12 487-304 SPRING – Plunger attachment 4 NM!
FIGURE 22
Cargo Compartment Installation
