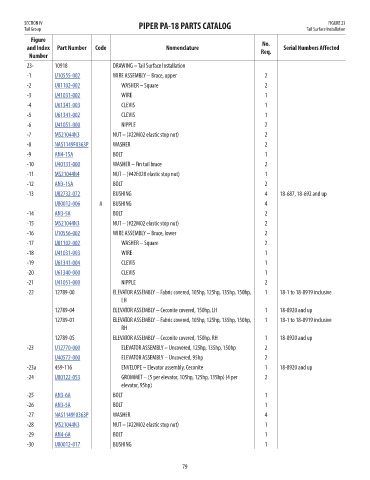

SECTION IV PIPER PA-18 PARTS CATALOG FIGURE 23
Tail Group Tail Surface Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
23- 10918 DRAWING – Tail Surface Installation NM!
-1 U10555-002 WIRE ASSEMBLY – Brace, upper 2 209.62
-2 U81102-002 WASHER – Square 2 6.11
-3 U41031-002 WIRE 1 42.41
-4 U61341-003 CLEVIS 1 33.45
-5 U61341-002 CLEVIS 1 44.31
-6 U41051-000 NIPPLE 2 30.51
-7 MS21044N3 NUT – (#22M02 elastic stop nut) 2 0.24
-8 NAS1149F0363P WASHER 2 0.04
-9 AN4-15A BOLT 1 0.44
-10 U40131-000 WASHER – Fin tail brace 2 9.15
-11 MS21044N4 NUT – (#42E028 elastic stop nut) 1 0.3
-12 AN3-15A BOLT 2 0.32
-13 U82732-072 BUSHING 4 18-687, 18-692 and up 6.47
U80012-006 A BUSHING 4 17.92
-14 AN3-5A BOLT 2 0.16
-15 MS21044N3 NUT – (#22M02 elastic stop nut) 2 0.24
-16 U10556-002 WIRE ASSEMBLY – Brace, lower 2 209.62
-17 U81102-002 WASHER – Square 2 6.11
-18 U41031-003 WIRE 1 37.31
-19 U61341-004 CLEVIS 1 48.26
-20 U61340-000 CLEVIS 1 44.31
-21 U41051-000 NIPPLE 2 30.51
-22 12789-00 ELEVATOR ASSEMBLY – Fabric covered, 105hp, 125hp, 135hp, 150hp, 1 18-1 to 18-8919 inclusive NM!
LH
12789-04 ELEVATOR ASSEMBLY – Ceconite covered, 150hp, LH 1 18-8920 and up NM!
12789-01 ELEVATOR ASSEMBLY – Fabric covered, 105hp, 125hp, 135hp, 150hp, 1 18-1 to 18-8919 inclusive NM!
RH
12789-05 ELEVATOR ASSEMBLY – Ceconite covered, 150hp, RH 1 18-8920 and up NM!
-23 U12770-000 ELEVATOR ASSEMBLY – Uncovered, 125hp, 135hp, 150hp 2 673.26
U40572-000 ELEVATOR ASSEMBLY – Uncovered, 95hp 2 674.78
-23a 459-116 ENVELOPE – Elevator assembly, Ceconite 1 18-8920 and up NM!
-24 U80122-053 GROMMET – (5 per elevator, 105hp, 125hp, 135hp) (4 per 2 4.09
elevator, 95hp)
-25 AN3-6A BOLT 1 0.16
-26 AN3-5A BOLT 1 0.16
-27 NAS1149F0363P WASHER 4 0.04
-28 MS21044N3 NUT – (#22M02 elastic stop nut) 1 0.24
-29 AN4-6A BOLT 1 0.22
-30 U80012-017 BUSHING 1 12.71

79
