Page 87 - Piper PA-18 Super Cub Interactive Parts Catalog

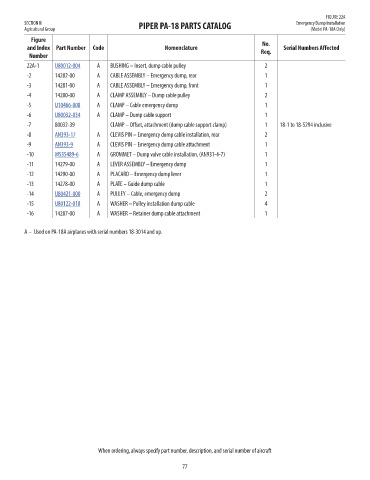

FIGURE 22A
SECTION III PIPER PA-18 PARTS CATALOG Emergency Dump Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
22A-1 U80012-004 A BUSHING – Insert, dump cable pulley 2 7.45
-2 14282-00 A CABLE ASSEMBLY – Emergency dump, rear 1 NM!
-3 14281-00 A CABLE ASSEMBLY – Emergency dump, front 1 NM!
-4 14280-00 A CLAMP ASSEMBLY – Dump cable pulley 2 NM!
-5 U10466-008 A CLAMP – Cable emergency dump 1 26.15
-6 U80032-034 A CLAMP – Dump cable support 1 25.91
-7 80032-39 CLAMP – Offset, attachment (dump cable support clamp) 1 18-1 to 18-5294 inclusive NM!
-8 AN393-17 A CLEVIS PIN – Emergency dump cable installation, rear 2 1.08
-9 AN393-9 A CLEVIS PIN – Emergency dump cable attachment 1 1.03
-10 MS35489-6 A GROMMET – Dump valve cable installation, (AN931-4-7) 1 0.4
-11 14279-00 A LEVER ASSEMBLY – Emergency dump 1 NM!
-12 14290-00 A PLACARD – Emergency dump lever 1 NM!
-13 14278-00 A PLATE – Guide dump cable 1 NM!
-14 U80421-000 A PULLEY – Cable, emergency dump 2 12.37
-15 U80122-018 A WASHER – Pulley installation dump cable 4 2.16
-16 14287-00 A WASHER – Retainer dump cable attachment 1 NM!

A – Used on PA-18A airplanes with serial numbers 18-3014 and up.

When ordering, always specify part number, description, and serial number of aircraft

77
