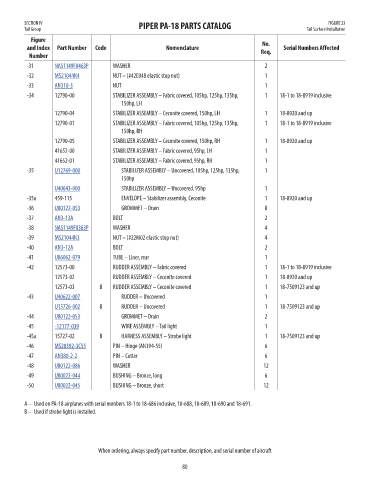

SECTION IV PIPER PA-18 PARTS CATALOG FIGURE 23
Tail Group Tail Surface Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-31 NAS1149F0463P WASHER 2 0.06
-32 MS21044N4 NUT – (#42E048 elastic stop nut) 1 0.3
-33 AN310-3 NUT 1 1.5
-34 12790-00 STABILIZER ASSEMBLY – Fabric covered, 105hp, 125hp, 135hp, 1 18-1 to 18-8919 inclusive NM!
150hp, LH
12790-04 STABILIZER ASSEMBLY – Ceconite covered, 150hp, LH 1 18-8920 and up NM!
12790-01 STABILIZER ASSEMBLY – Fabric covered, 105hp, 125hp, 135hp, 1 18-1 to 18-8919 inclusive NM!
150hp, RH
12790-05 STABILIZER ASSEMBLY – Ceconite covered, 150hp, RH 1 18-8920 and up NM!
41652-00 STABILIZER ASSEMBLY – Fabric covered, 95hp, LH 1 NM!
41652-01 STABILIZER ASSEMBLY – Fabric covered, 95hp, RH 1 NM!
-35 U12769-000 STABILIZER ASSEMBLY – Uncovered, 105hp, 125hp, 135hp, 1 827.68
150hp
U40643-000 STABILIZER ASSEMBLY – Uncovered, 95hp 1 793.86
-35a 459-115 ENVELOPE – Stabilizer assembly, Ceconite 1 18-8920 and up NM!
-36 U80122-053 GROMMET – Drain 8 4.09
-37 AN3-13A BOLT 2 0.3
-38 NAS1149F0363P WASHER 4 0.04
-39 MS21044N3 NUT – (#22M02 elastic stop nut) 4 0.24
-40 AN3-12A BOLT 2 0.16
-41 U86062-079 TUBE – Liner, rear 1 89.95
-42 12573-00 RUDDER ASSEMBLY – Fabric covered 1 18-1 to 18-8919 inclusive NM!
12573-02 RUDDER ASSEMBLY – Ceconite covered 1 18-8920 and up NM!
12573-03 B RUDDER ASSEMBLY – Ceconite covered 1 18-7509123 and up NM!
-43 U40622-007 RUDDER – Uncovered 1 918.25
U15726-002 B RUDDER – Uncovered 1 18-7509123 and up 952.61
-44 U80122-053 GROMMET – Drain 2 4.09
-45 -12177-039 WIRE ASSEMBLY – Tail light 1 13.87
-45a 15727-02 B HARNESS ASSEMBLY – Strobe light 1 18-7509123 and up NM!
-46 MS20392-3C55 PIN – Hinge (AN394-55) 6 1.08
-47 AN380-2-2 PIN – Cotter 6 0.04

-48 U80122-086 WASHER 12 2.46
-49 U80022-044 BUSHING – Bronze, long 6 1.26
-50 U80022-045 BUSHING – Bronze, short 12 1.6

A – Used on PA-18 airplanes with serial numbers 18-1 to 18-686 inclusive, 18-688, 18-689, 18-690 and 18-691.
B – Used if strobe light is installed.

When ordering, always specify part number, description, and serial number of aircraft
