Page 94 - Piper PA-18 Super Cub Interactive Parts Catalog

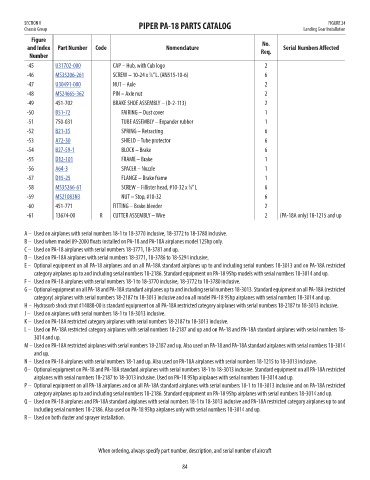

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 24
Chassis Group Landing Gear Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-45 U31702-000 CAP – Hub, with Cub logo 2 41.8
-46 MS35206-261 SCREW – 10-24 x ⁄8” L. (AN515-10-6) 6 0.16
3
-47 U30491-000 NUT – Axle 2 77.13
-48 MS24665-362 PIN – Axle nut 2 0.11
-49 451-702 BRAKE SHOE ASSEMBLY – (D-2-113) 2 NM!
-50 B51-72 FAIRING – Dust cover 1 107.93
-51 750-031 TUBE ASSEMBLY – Expander rubber 1 NM!
-52 B21-35 SPRING – Retracting 6 9.32
-53 A72-30 SHIELD – Tube protector 6 29.54
-54 B27-59-1 BLOCK – Brake 6 73.02
-55 D12-101 FRAME – Brake 1 28.13
-56 A64-3 SPACER – Nozzle 1 6.15
-57 D15-25 FLANGE – Brake frame 1 50.8
-58 MS35266-61 SCREW – Fillister head, #10-32 x ⁄8” L 6 0.38
3
-59 MS21083N3 NUT – Stop, #10-32 6 0.22
-60 451-771 FITTING – Brake bleeder 2 NM!
-61 13674-00 R CUTTER ASSEMBLY – Wire 2 (PA-18A only) 18-1215 and up NM!

A – Used on airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
B – Used when model 89-2000 floats installed on PA-18 and PA-18A airplanes model 125hp only.
C – Used on PA-18 airplanes with serial numbers 18-3771, 18-3781 and up.
D – Used on PA-18A airplanes with serial numbers 18-3771, 18-3786 to 18-5294 inclusive.
E – Optional equipment on all PA-18 airplanes and on all PA-18A standard airplanes up to and including serial numbers 18-3013 and on PA-18A restricted
category airplanes up to and including serial numbers 18-2186. Standard equipment on PA-18 95hp models with serial numbers 18-3014 and up.
F – Used on PA-18 airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
G – Optional equipment on all PA-18 and PA-18A standard airplanes up to and including serial numbers 18-3013. Standard equipment on all PA-18A (restricted
category) airplanes with serial numbers 18-2187 to 18-3013 inclusive and on all model PA-18 95hp airplanes with serial numbers 18-3014 and up.
H – Hydrasorb shock strut #14088-00 is standard equipment on all PA-18A restricted category airplanes with serial numbers 18-2187 to 18-3013 inclusive.
J – Used on airplanes with serial numbers 18-1 to 18-3013 inclusive.
K – Used on PA-18A restricted category airplanes with serial numbers 18-2187 to 18-3013 inclusive.
L – Used on PA-18A restricted category airplanes with serial numbers 18-2187 and up and on PA-18 and PA-18A standard airplanes with serial numbers 18-
3014 and up.
M – Used on PA-18A restricted airplanes with serial numbers 18-2187 and up. Also used on PA-18 and PA-18A standard airplanes with serial numbers 18-3014
and up.
N – Used on PA-18 airplanes with serial numbers 18-1 and up. Also used on PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
O– Optional equipment on PA-18 and PA-18A standard airplanes with serial numbers 18-1 to 18-3013 inclusive. Standard equipment on all PA-18A restricted
airplanes with serial numbers 18-2187 to 18-3013 inclusive. Used on PA-18 95hp airplanes with serial numbers 18-3014 and up.
P – Optional equipment on all PA-18 airplanes and on all PA-18A standard airplanes with serial numbers 18-1 to 18-3013 inclusive and on PA-18A restricted
category airplanes up to and including serial numbers 18-2186. Standard equipment on PA-18 95hp airplanes with serial numbers 18-3014 and up.
Q – Used on PA-18 airplanes and PA-18A standard airplanes with serial numbers 18-1 to 18-3013 inclusive and PA-18A restricted category airplanes up to and
including serial numbers 18-2186. Also used on PA-18 95hp airplanes only with serial numbers 18-3014 and up.
R – Used on both duster and sprayer installation.

When ordering, always specify part number, description, and serial number of aircraft

84
