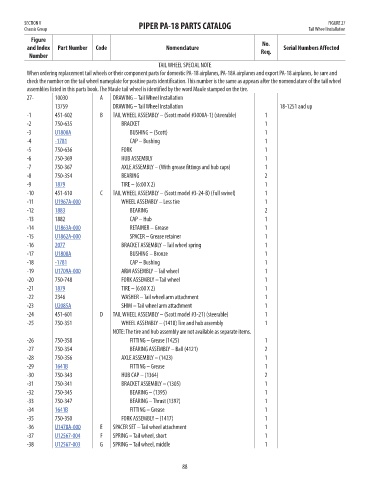

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 27
Chassis Group Tail Wheel Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
TAIL WHEEL SPECIAL NOTE x
When ordering replacement tail wheels or their component parts for domestic PA-18 airplanes, PA-18A airplanes and export PA-18 airplanes, be sure and
check the number on the tail wheel nameplate for positive parts identification. This number is the same as appears after the nomenclature of the tail wheel
assemblies listed in this parts book. The Maule tail wheel is identified by the word Maule stamped on the tire.
27- 10030 A DRAWING – Tail Wheel Installation NM!
13759 DRAWING – Tail Wheel Installation 18-1251 and up NM!
-1 451-602 B TAIL WHEEL ASSEMBLY – (Scott model #3000A-1) (steerable) 1 NM!
-2 750-635 BRACKET 1 NM!
-3 U1800A BUSHING – (Scott) 1 65.27
-4 -1781 CAP – Bushing 1 71.89
-5 750-636 FORK 1 NM!
-6 750-369 HUB ASSEMBLY 1 NM!
-7 750-367 AXLE ASSEMBLY – (With grease fittings and hub caps) 1 NM!
-8 750-354 BEARING 2 NM!
-9 1879 TIRE – (6:00 X 2) 1 99.15
-10 451-610 C TAIL WHEEL ASSEMBLY – (Scott model #3-24-B) (Full swivel) 1 NM!
-11 U1967A-000 WHEEL ASSEMBLY – Less tire 1 520.96
-12 1883 BEARING 2 99.94
-13 1882 CAP – Hub 1 NM!
-14 U1863A-000 RETAINER – Grease 1 9.77
-15 U1862A-000 SPACER – Grease retainer 1 11.19
-16 2077 BRACKET ASSEMBLY – Tail wheel spring 1 350.48
-17 U1800A BUSHING – Bronze 1 65.27
-18 -1781 CAP – Bushing 1 71.89
-19 U1709A-000 ARM ASSEMBLY – Tail wheel 1 520.97
-20 750-748 FORK ASSEMBLY – Tail wheel 1 NM!
-21 1879 TIRE – (6:00 X 2) 1 99.15
-22 2346 WASHER – Tail wheel arm attachment 1 NM!
-23 U2085A SHIM – Tail wheel arm attachment 1 4.37
-24 451-601 D TAIL WHEEL ASSEMBLY – (Scott model #3-21) (steerable) 1 NM!
-25 750-351 WHEEL ASSEMBLY – (1418) Tire and hub assembly 1 NM!
NOTE: The tire and hub assembly are not available as separate items. x
-26 750-358 FITTING – Grease (1425) 1 NM!
-27 750-354 BEARING ASSEMBLY – Ball (4121) 2 NM!
-28 750-356 AXLE ASSEMBLY – (1423) 1 NM!
-29 1641B FITTING – Grease 1 1.3
-30 750-343 HUB CAP – (1364) 2 NM!
-31 750-341 BRACKET ASSEMBLY – (1305) 1 NM!
-32 750-345 BEARING – (1395) 1 NM!
-33 750-347 BEARING – Thrust (1397) 1 NM!
-34 1641B FITTING – Grease 1 1.3
-35 750-350 FORK ASSEMBLY – (1417) 1 NM!
-36 U1478A-000 E SPACER SET – Tail wheel attachment 1 86.25
-37 U12567-004 F SPRING – Tail wheel, short 1 54.51
-38 U12567-003 G SPRING – Tail wheel, middle 1 82.79

88
