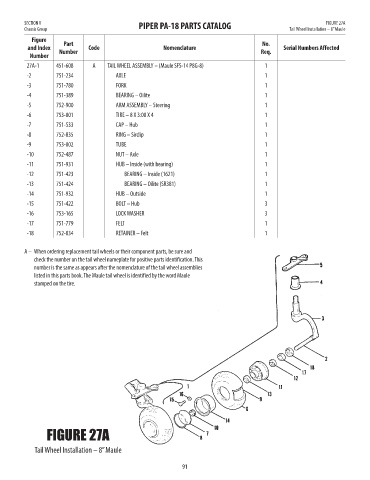

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 27A
Chassis Group Tail Wheel Installation – 8” Maule
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
27A-1 451-608 A TAIL WHEEL ASSEMBLY – (Maule SFS-14 P8G-8) 1 NM!
-2 751-234 AXLE 1 NM!
-3 751-780 FORK 1 NM!
-4 751-389 BEARING – Oilite 1 NM!
-5 752-900 ARM ASSEMBLY – Steering 1 NM!
-6 753-001 TIRE – 8 X 3:00 X 4 1 NM!
-7 751-533 CAP – Hub 1 NM!
-8 752-835 RING – Sirclip 1 NM!
-9 753-002 TUBE 1 NM!
-10 752-487 NUT – Axle 1 NM!
-11 751-931 HUB – Inside (with bearing) 1 NM!
-12 751-423 BEARING – Inside (1621) 1 NM!
-13 751-424 BEARING – Oilite (SR381) 1 NM!
-14 751-932 HUB – Outside 1 NM!
-15 751-422 BOLT – Hub 3 NM!
-16 753-165 LOCK WASHER 3 NM!
-17 751-779 FELT 1 NM!
-18 752-834 RETAINER – Felt 1 NM!

A – When ordering replacement tail wheels or their component parts, be sure and
check the number on the tail wheel nameplate for positive parts identification. This
number is the same as appears after the nomenclature of the tail wheel assemblies
listed in this parts book. The Maule tail wheel is identified by the word Maule
stamped on the tire.

FIGURE 27A

Tail Wheel Installation – 8” Maule

91
